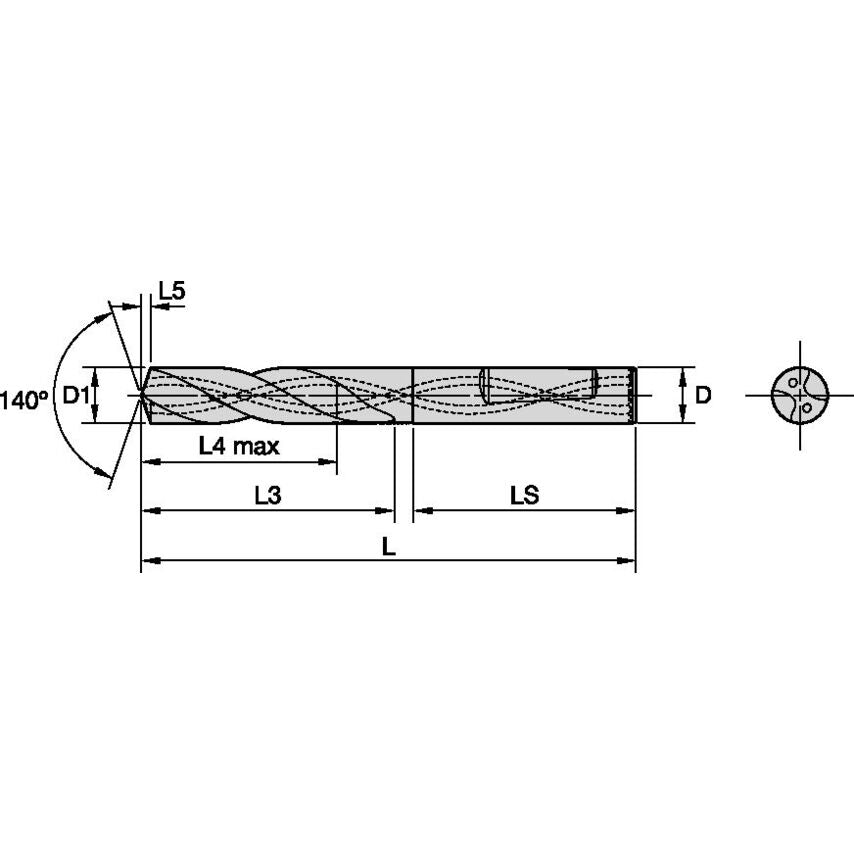

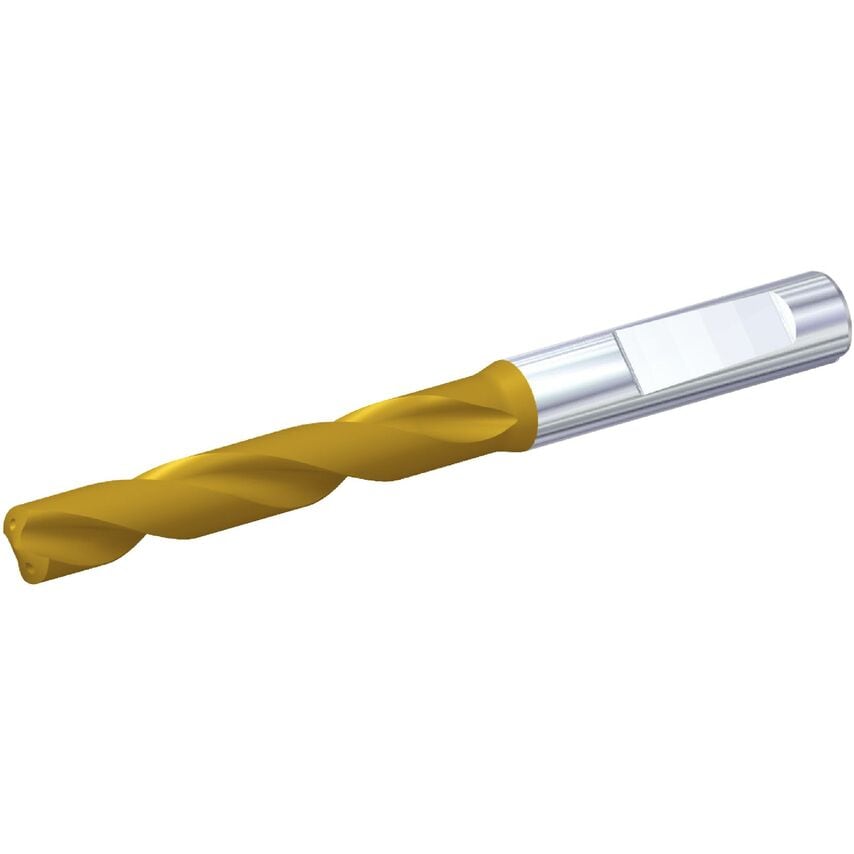

GOdrill Wide Range of Materials Through CoolantSolid Carbide Drills
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Overall Length | 103mm | 103.0000mm |
| Flute Length | 61mm | 61.0000mm |
| Drill Diameter | 8.3000mm |
| Functional Length | 101.5900mm |
| Assembly Length | 59.59mm |
| Hand Preference | Right |
| Finish/Coating | TiN |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Drill Point | 1.41mm |
| Material | Carbide |
| Drill Depth | 49mm | 49.0000mm |
| Helix Angle | 27.080 |
| Unit Measured | Metric |
| Clamping Length | 40mm |
| Primary Material | Stainless Steel |
| MFR Part No. | 4149473 |
| Shank Length | 40.0000mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Coolant Supplied | Yes |
| Coolant Diameter | 1.2800mm (0.0390in) |
| Flute Construction | Helical Flute |
| Helix Type | Right Hand Helix/Flute |
