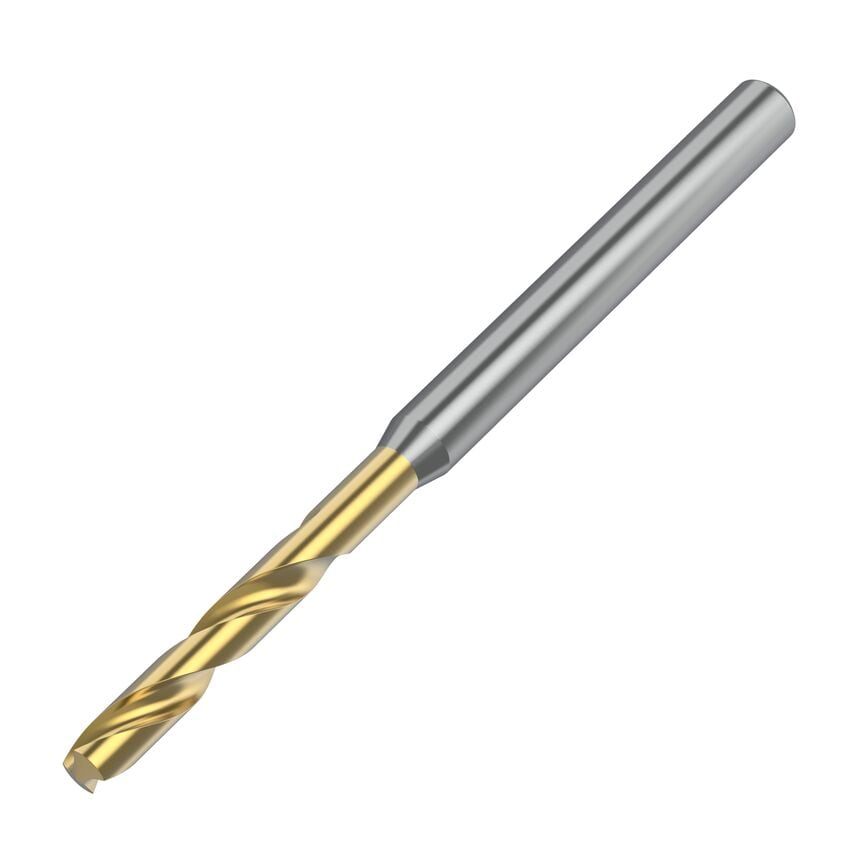

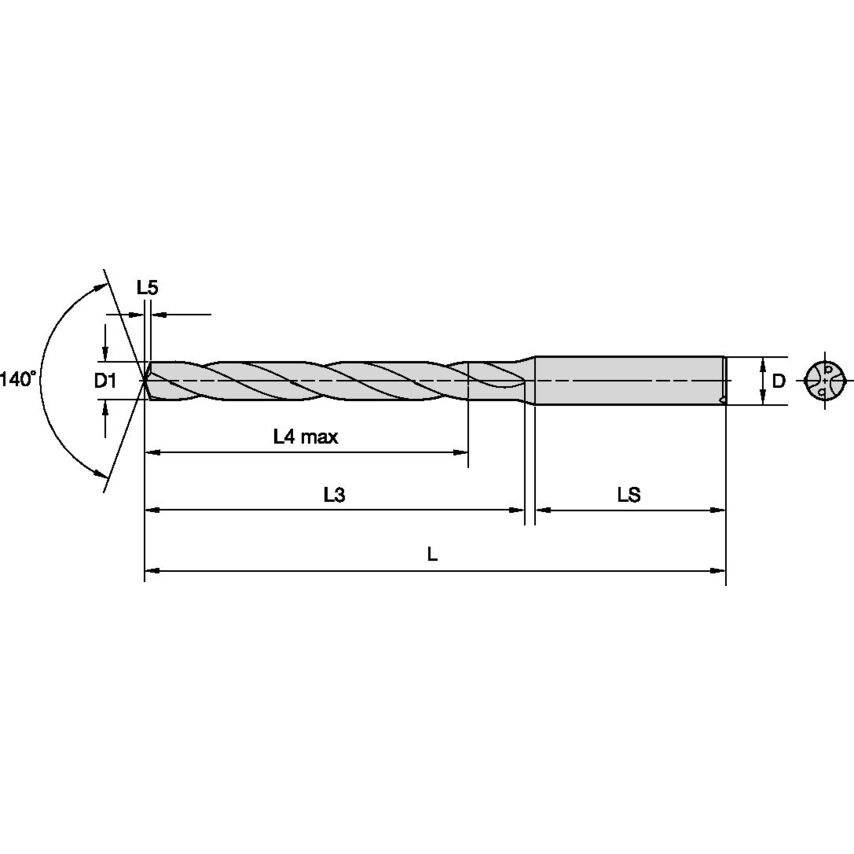

GOdrill Wide Range of Materials Through CoolantSolid Carbide Drills
| Material | Carbide |
| Primary Material | Stainless Steel |
| Diameter x Depth | 3xD |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | Coolant Through |
| Drill Diameter Tolerance | -0.014000 to 0.000000mm |
| Drill Diameter | 1.7000mm |
| Series | B051A |
| Functional Length | 57.7400mm |
| Carbide Drill Type | Carbide High Performance |
| Material Grade | KC7315 |
| Finish/Coating | TiN |
| Shank Diameter | 4mm |
| Unit Measured | Metric |
| Adapter / Shank / Bore Diameter | 4.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 29.682 |
| Drill Point | 0.26mm |
| Flute Type | Spiral |
| Clamping Length | 13.5mm |
| Adapter Style | Straight-Cylindrical |
| Coolant Supplied | Yes |
| Assembly Length | 44.24mm |
| Point Angle | 140 |
| MFR Part No. | 4148806 |
| Drill Depth | 6mm | 6.0000mm |
| Shank Length | 28.0000mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Overall Length | 58mm | 58.0000mm |
| Hand Preference | Right |
| Adapter Type | Cylindrical |
| Flute Length | 9mm | 9.0000mm |
| ISO Category | K | M | N | P | S |
| Flute Construction | Helical Flute |
| Coolant Diameter | 0.2000mm (0.0567in) |
| Standards Met | DIN 6535 |
