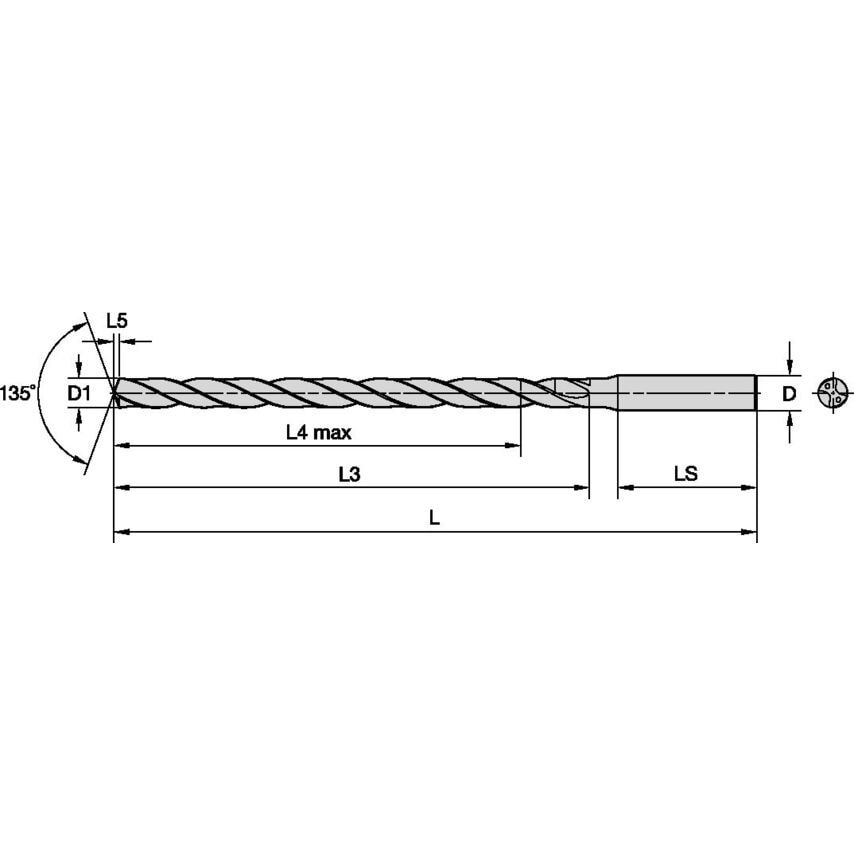

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Shank Length | 36.0000mm |
| Adapter Type | Cylindrical |
| Drill Depth | 69mm | 69.0000mm |
| Overall Length | 125mm | 125.0000mm |
| Assembly Length | 88.104mm |
| MFR Part No. | 4169246 |
| Clamping Length | 36mm |
| Coolant Supplied | Yes |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Hand Preference | Right |
| Functional Length | 124.1040mm |
| Drill Diameter | 4.7630mm |
| Helix Angle | 24.789 |
| Drill Point | 0.896mm |
| Helix Type | Right Hand Helix/Flute |
| Flute Construction | Helical Flute |
| Flute Length | 82mm | 82.0000mm |
| Unit Measured | Metric |
| Finish/Coating | TiAlN |
| Primary Material | Steel |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Material | Carbide |
