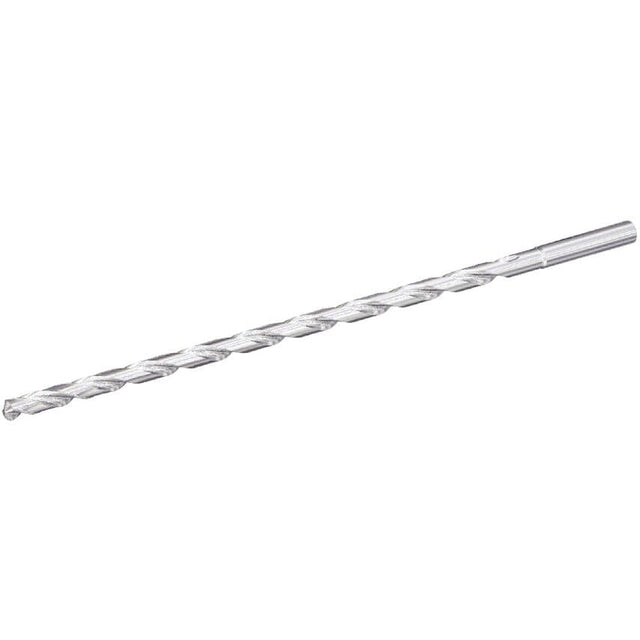

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| MFR Part No. | 6351246 |
| Adapter Style | Straight-Cylindrical |
| Flute Construction | Helical Flute |
| Finish/Coating | Uncoated |
| Drill Diameter | 14.0000mm |
| Assembly Length | 390.62mm |
| Functional Length | 432.6200mm |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Helix Type | Right Hand Helix/Flute |
| Unit Measured | Metric |
| Flute Length | 380mm | 380.0000mm |
| Number of Flutes | 2 |
| Hand Preference | Right |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Shank Length | 52.0000mm |
| Overall Length | 435mm | 435.0000mm |
| Helix Angle | 29.324 |
| Drill Depth | 350mm | 350.0000mm |
| Drill Point | 2.38mm |
| Adapter Type | Cylindrical |
| Coolant Supplied | Yes |
| Primary Material | Steel |
| Material | Carbide |
| Coolant Diameter | 2.0000mm (0.0220in) |
