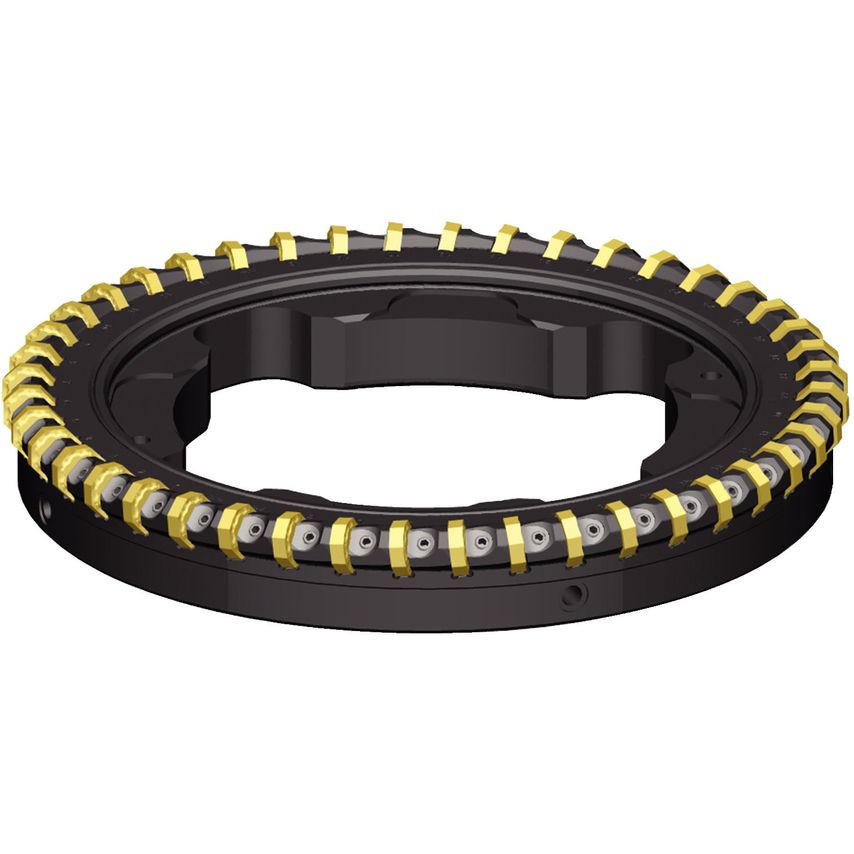

Shell MillsMill 16
| Coolant Supplied | No |
| Body Material | Steel |
| MFR Part No. | 6152230 |
| Number of Inserts | 70 |
| Max. Depth of Cut | 5.5000mm |
| Maximum Cutting Diameter | 512.55mm |
| Clamp Type | Wedge Clamp Before Insert |
| Milling Application | Face Mill |
| Adapter Type Machine Side | Shell Mill |
| Body Diameter Max | 508.19mm |
| Unit Measured | Metric |
| Insert Shape | O-Octogon 135 |
| Hand Preference | Right |
| Hub Diameter | 500mm | 500.0000mm |
| Center Cutting Tool | No Center Cutting |
| Number of Flutes | 70 |
