CCMT Turning Inserts
CoroTurn107 Turning Inserts for external and internal machining of small and slender components.

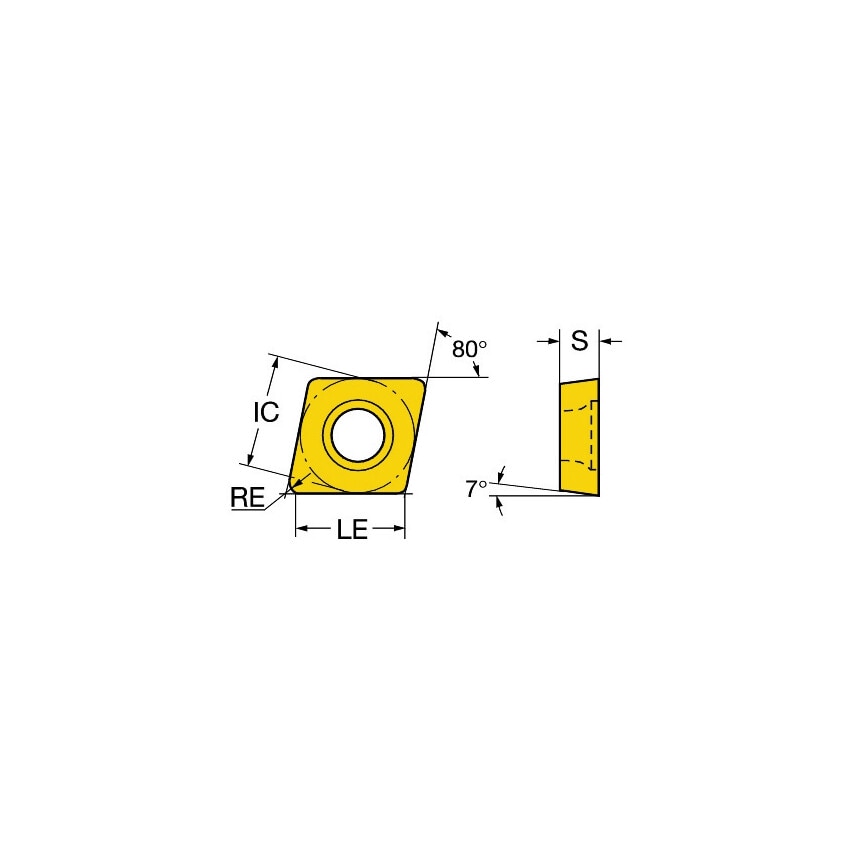

80 Rhombic Insert
Insert Grade 4325
(P20-P30) CVD Ti(C,N)+Al2O3+TiN coated grade for use on steel
| Thickness | 4.76mm |
| Inscribed Circle | 12.7mm |
| ISO Category | P |
| Insert Size | 120408 |
| Finish/Coating | Ti(C |
| ISO Cut | P25 |
| ISO Designation | CCMT 120408-PM |
| Clearance Angle | 7\u00b0 |
| ISO Category Grade | P |
| Manufacturer Grade | 4325 |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9mm |
| Corner Radius | 0.8 |
| MFR Part No. | 26434016 |
| Pack Quantity | 1 |
| Chipbreaker | PM |
| Shape | 80\u00b0 Rhombic |
| Material | Carbide |
| Insert Style | CCMT |
| Material Application | Steels |
