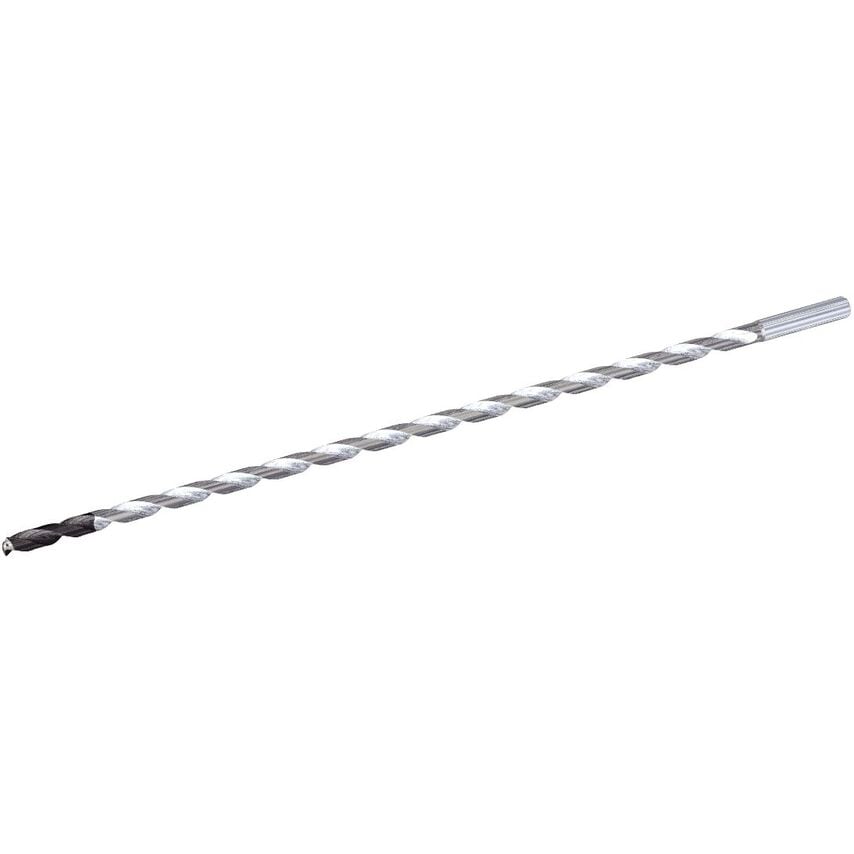

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Adapter / Shank / Bore Diameter | 4.0000mm |
| Coolant Diameter | 0.4200mm (0.0335in) |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Primary Material | Steel |
| Drill Diameter | 3.1750mm |
| Assembly Length | 190.96mm |
| Coolant Supplied | Yes |
| Finish/Coating | Uncoated |
| Helix Type | Right Hand Helix/Flute |
| Shank Length | 32.0000mm |
| Hand Preference | Right |
| Drill Point | 0.54mm |
| Number of Flutes | 2 |
| Helix Angle | 24.616 |
| Functional Length | 204.4600mm |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Drill Depth | 137mm | 137.0000mm |
| MFR Part No. | 6351379 |
| Overall Length | 205mm | 205.0000mm |
| Flute Construction | Helical Flute |
| Adapter Style | Straight-Cylindrical |
| Flute Length | 146mm | 146.0000mm |
