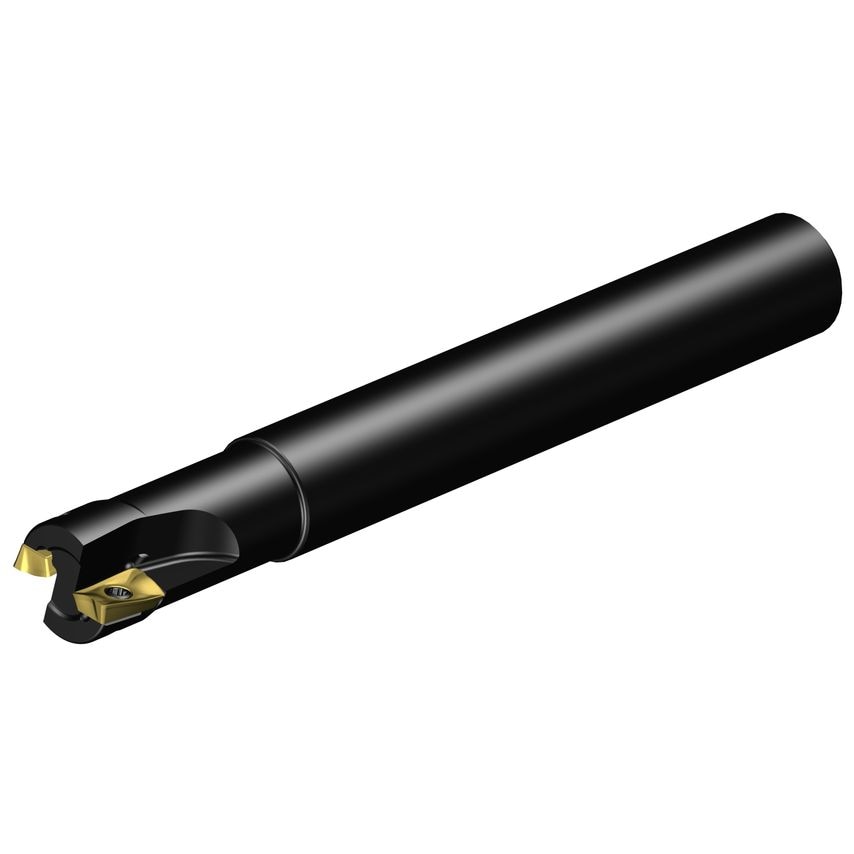

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| MFR Part No. | 5739326 |
| Maximum Ramping Angle | 15.5\u00b0 |
| Maximum Plunge Depth | 1.5mm |
| Unit Measured | Imperial |
| Coolant Entry Style | 1 |
| Hand Preference | Right |
| Body Material | Steel |
| Maximum Cutting Depth | 15.7mm |
| Usable Length | 53.98mm |
| Through Hole Function Property | Yes |
| Cutting Diameter | 60mm |
| CoroPak | 60 |
| Rotational Speed Maximum | 12100 1/min |
| Max. Depth of Cut | 15.7mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Connection Diameter | 14mm |
| Damping Property | No |
| Weight | 0.7kg |
| Functional Length | 40mm |
