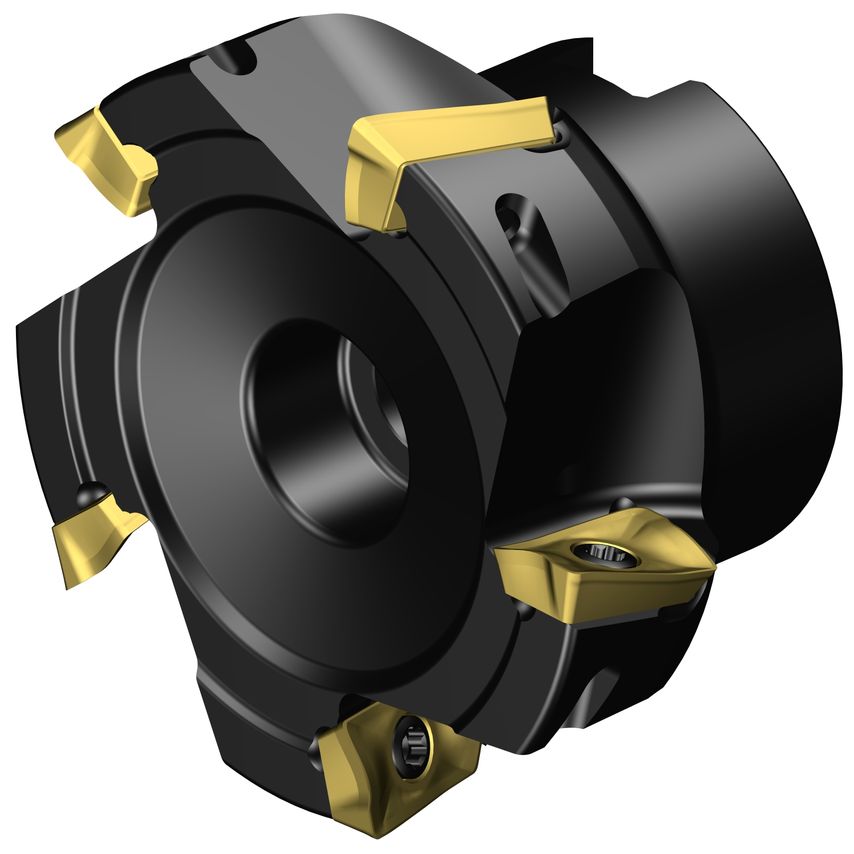

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| MFR Part No. | 5745554 |
| Connection Diameter | 6mm |
| Maximum Ramping Angle | 2.1\u00b0 |
| Rotational Speed Maximum | 16500 1/min |
| Body Material | Steel |
| CoroPak | 60 |
| Coolant Entry Style | 1 |
| Damping Property | No |
| Max. Depth of Cut | 15.7mm |
| Through Hole Function Property | Yes |
| Tool Cutting Edge Angle | 90\u00b0 |
| Functional Length | 40mm |
| Unit Measured | Metric |
| Standards Met | ISO6462 |
| Cutting Diameter | 126mm |
| Weight | 0.4kg |
| Maximum Cutting Depth | 15.7mm |
| Hand Preference | Right |
| Maximum Plunge Depth | 1.5mm |
