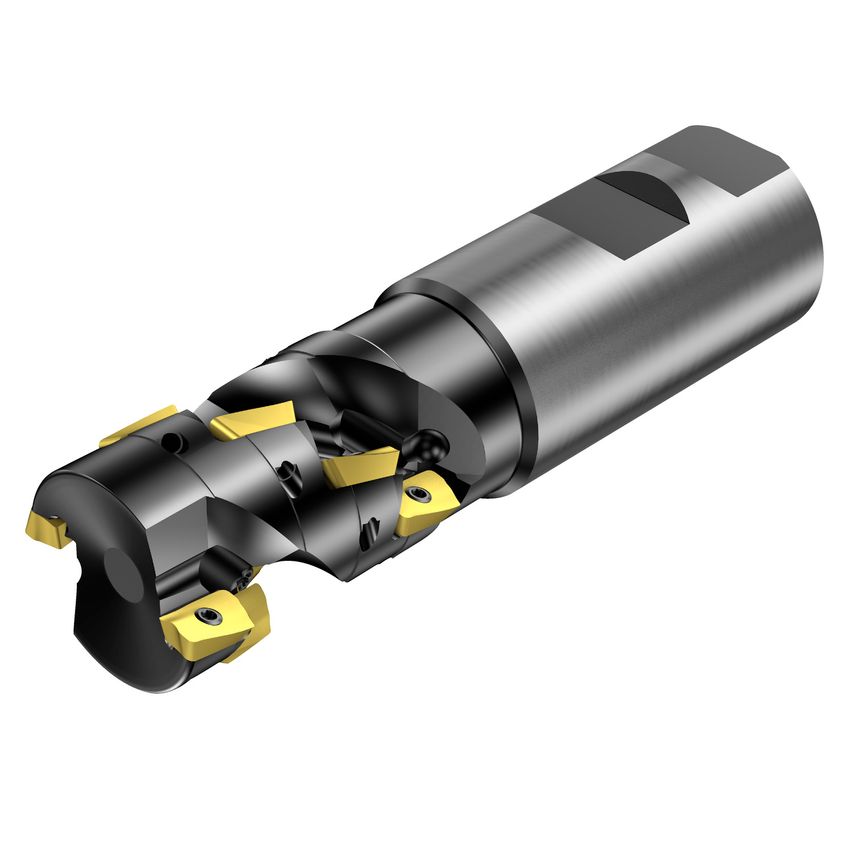

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available

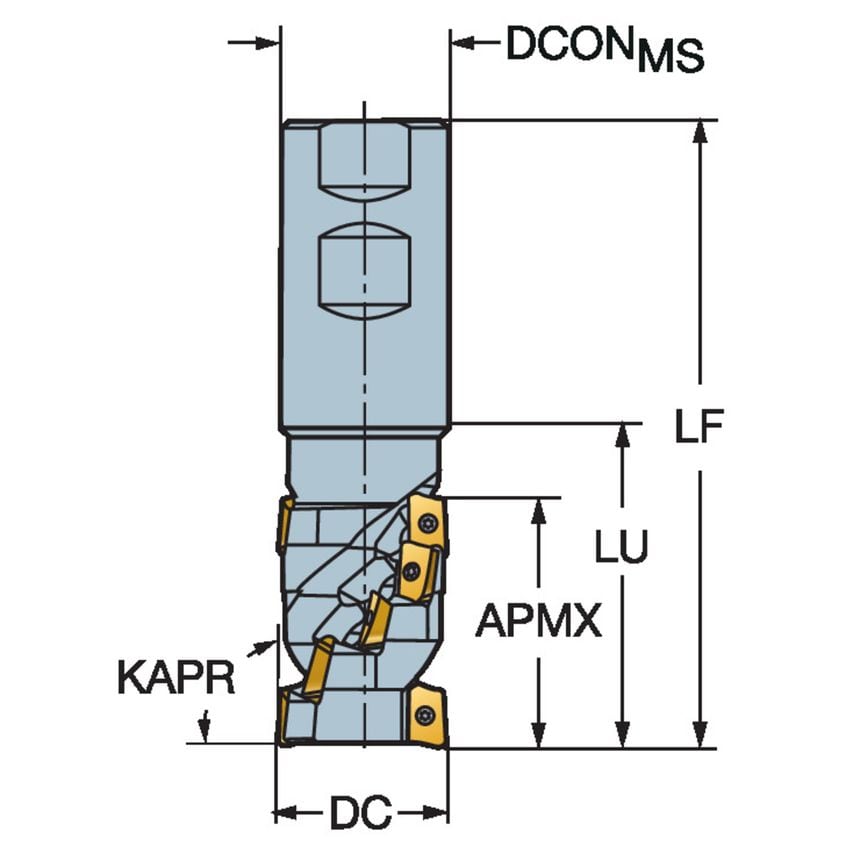

| Weight | 1.17kg |
| Standards Met | ISO3338-2 |
| Max. Depth of Cut | 54.1mm |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 19500 1/min |
| Cutting Diameter | 68mm |
| Hand Preference | Right |
| Functional Length | 91mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Maximum Cutting Depth | 54.1mm |
| CoroPak | 63 |
| Unit Measured | Imperial |
| Damping Property | No |
| Usable Length | 66.87mm |
| MFR Part No. | 5740095 |
| Connection Diameter | 16mm |
| Body Material | Steel |
| Maximum Ramping Angle | 0\u00b0 |
| Coolant Entry Style | Without Coolant |
