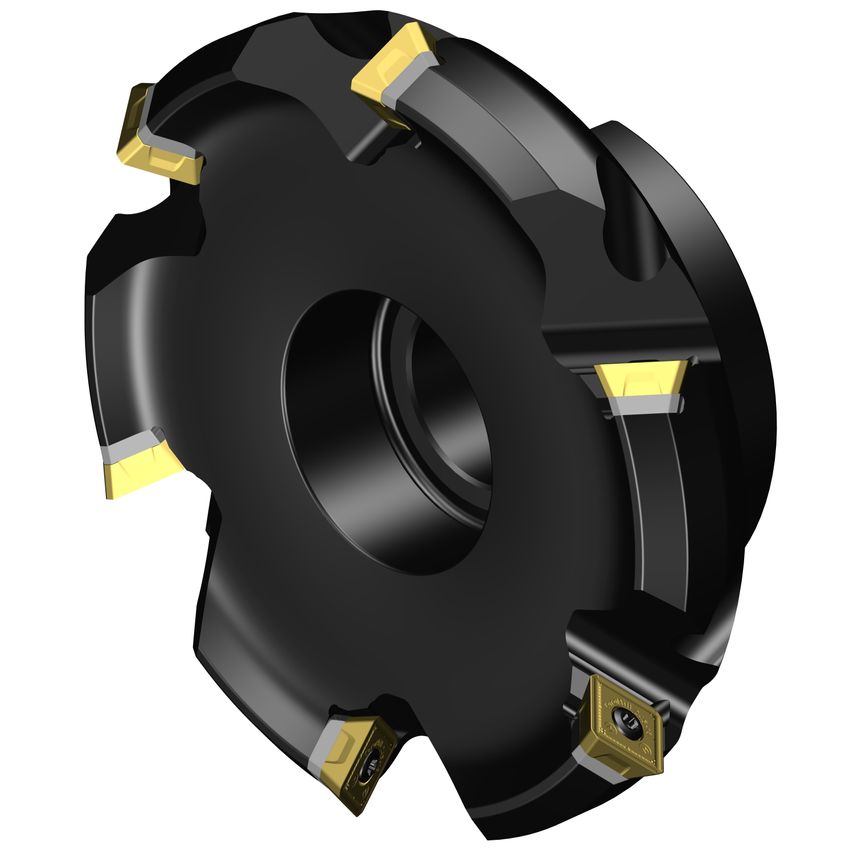

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials

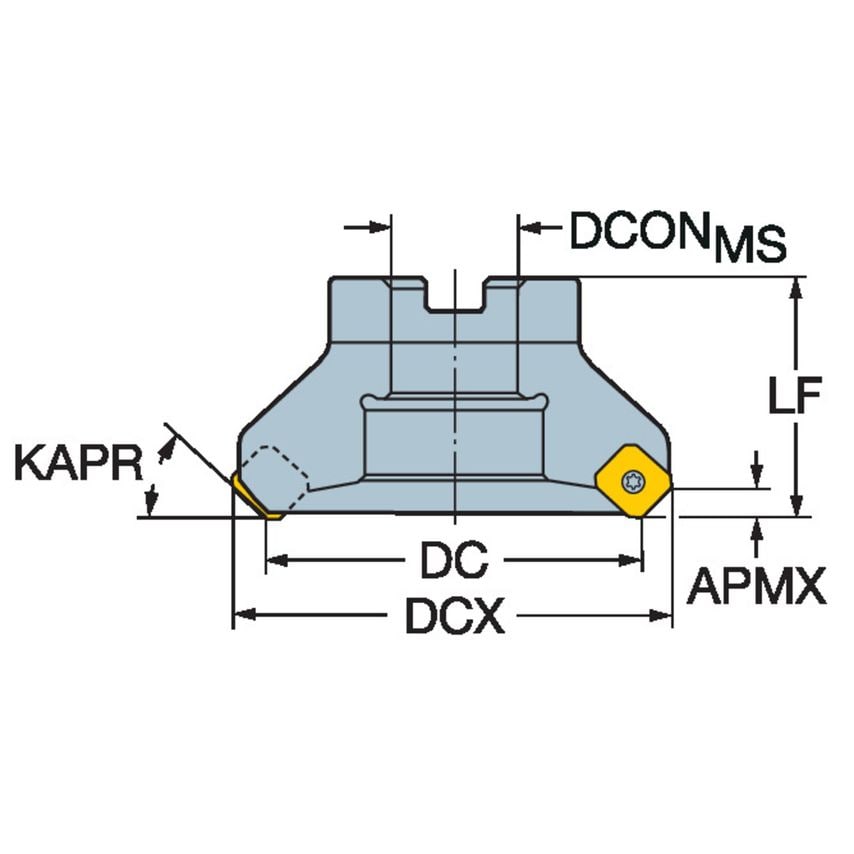

| Standards Met | ISO6462 |
| Unit Measured | Imperial |
| Tool Cutting Edge Angle | 45\u00b0 |
| Rotational Speed Maximum | 4400 1/min |
| Max. Depth of Cut | 10.0mm |
| Functional Length | 63mm |
| Damping Property | No |
| Hand Preference | Right |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Cutting Diameter | 152.4mm |
| Maximum Cutting Diameter | 171.2011mm |
| Maximum Cutting Depth | 10.0mm |
| Body Material | Steel |
| CoroPak | 4.1 |
| Weight | 5.08kg |
| Connection Diameter | 38.1mm |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 5740091 |
