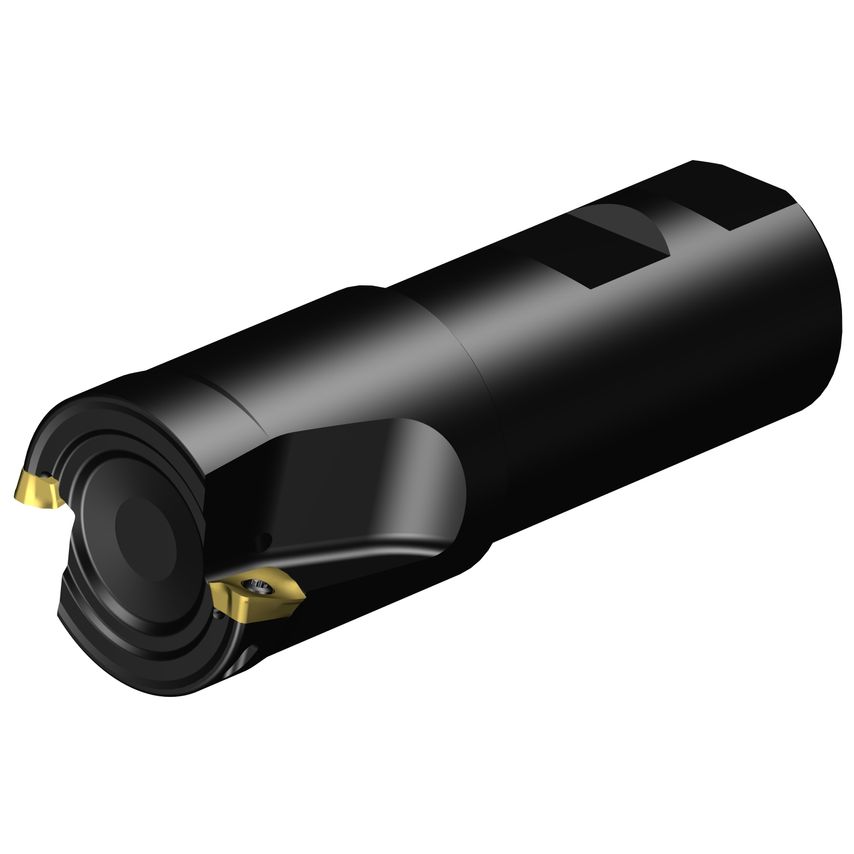

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Rotational Speed Maximum | 27800 1/min |

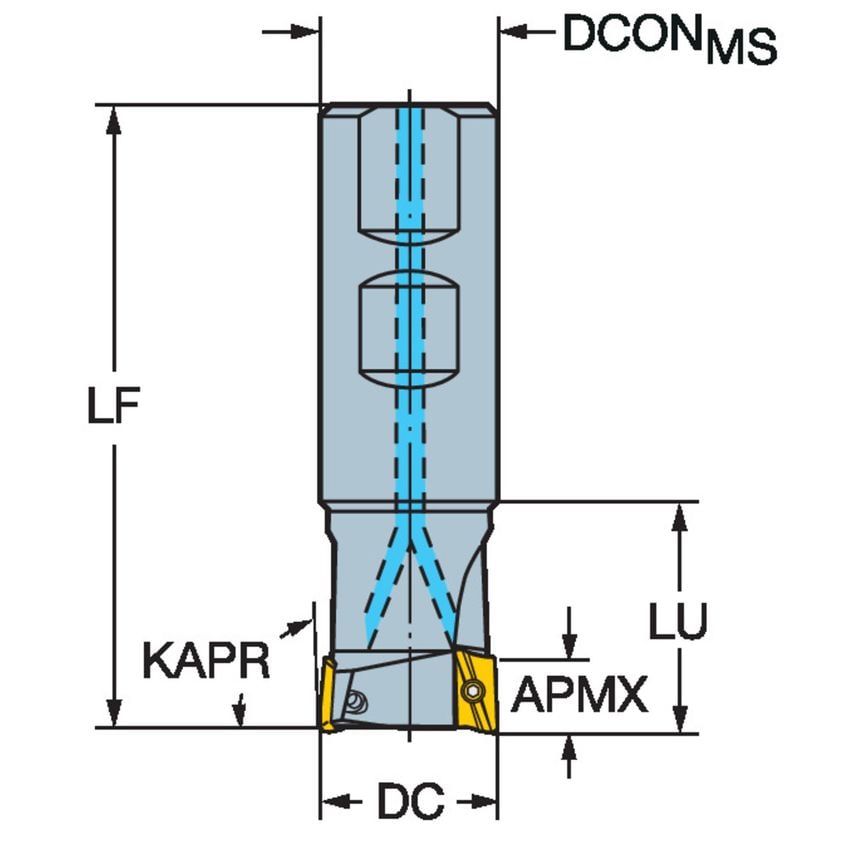

| Functional Length | 82mm |
| Unit Measured | Imperial |
| Maximum Cutting Depth | 10.01mm |
| Cutting Diameter | 70mm |
| Coolant Entry Style | 1 |
| Maximum Plunge Depth | 1mm |
| Standards Met | ISO3338-2 |
| MFR Part No. | 5740169 |
| Maximum Ramping Angle | 2.2\u00b0 |
| Damping Property | No |
| Tool Cutting Edge Angle | 90\u00b0 |
| Weight | 0.62kg |
| CoroPak | 60 |
| Max. Depth of Cut | 10.01mm |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Body Material | Steel |
| Connection Diameter | 4.5mm |
