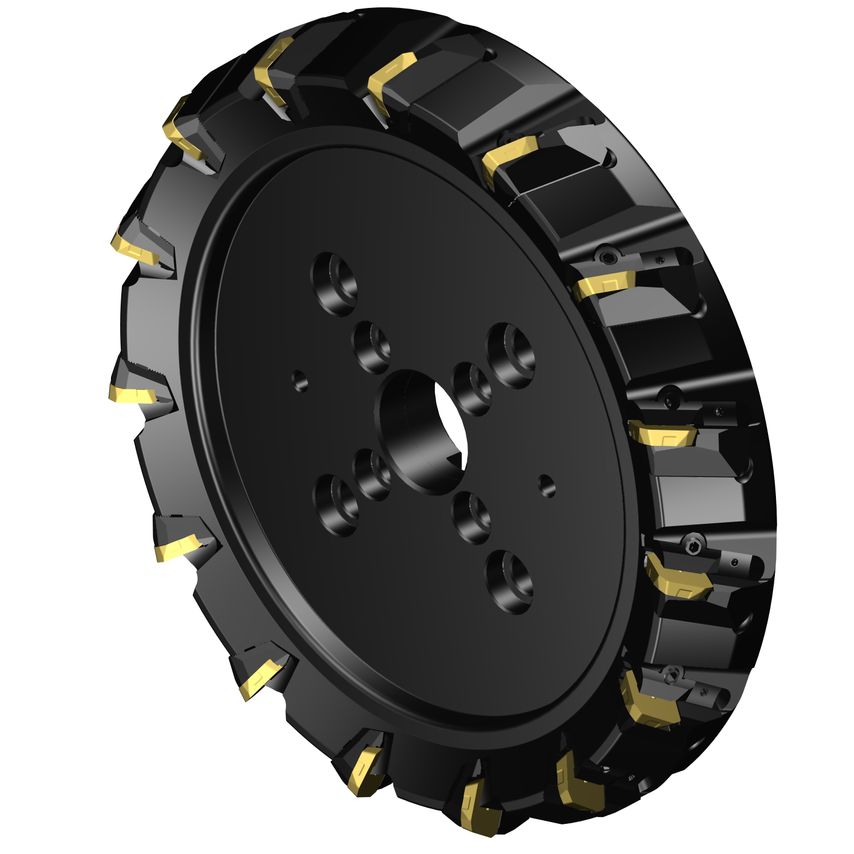

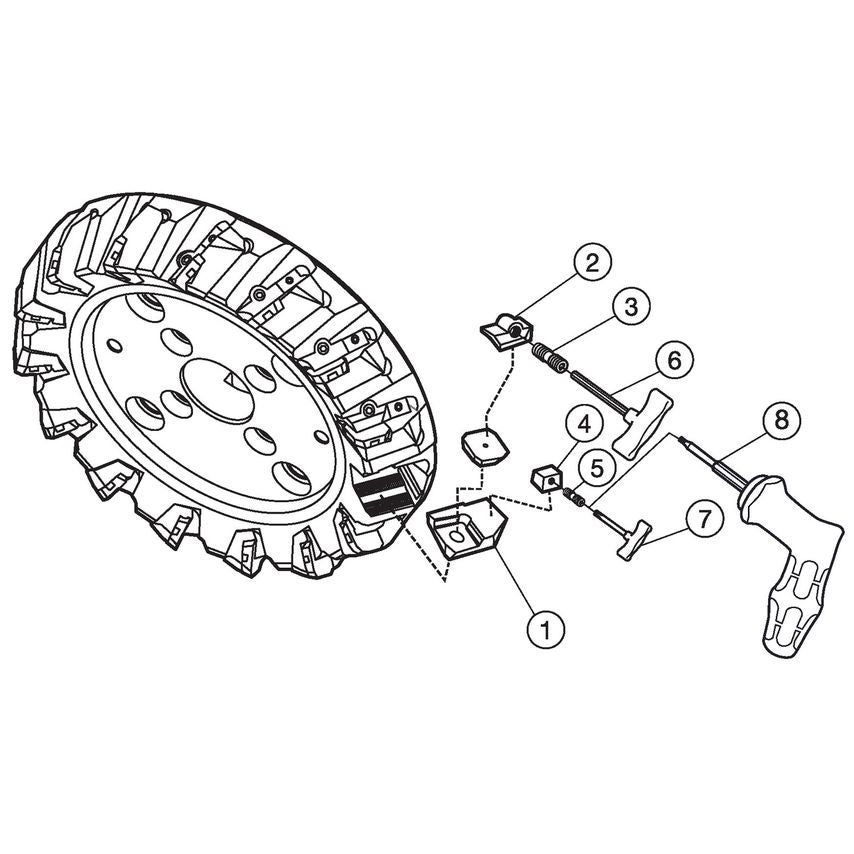

Product Range: CoroMill 360Tool Type: Face millingHeavy duty face millWith a maximum cutting depth of 18 mm (0.709 inch) together with high feed per tooth, CoroMill 360 provides a productivity boost that is tough to beat, with minimum risk for failure and machine downtime.Features & Benefits- First choice for heavy roughing- 4 cutting edges- Easy indexing of inserts via wedge Cartridges for securityApplication- Face milling- Diameter range: 160-500 mm (6.000-20.000 inch)
| Rotational Speed Maximum | 315 1/min |
| Body Material | Steel |
| Weight | 49.88kg |
| Tool Cutting Edge Angle | 60\u00b0 |
| Coolant Entry Style | Without Coolant |
| Standards Met | ISO6462 |
| CoroPak | 9.1 |
| Maximum Ramping Angle | 0\u00b0 |
| Unit Measured | Imperial |
| Maximum Cutting Diameter | 427.2mm |
| MFR Part No. | 5722515 |
| Body Diameter | 17.03in |
| Cutting Diameter | 406.4mm |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Connection Diameter | 63.5mm |
| Damping Property | No |
| Functional Length | 80mm |
