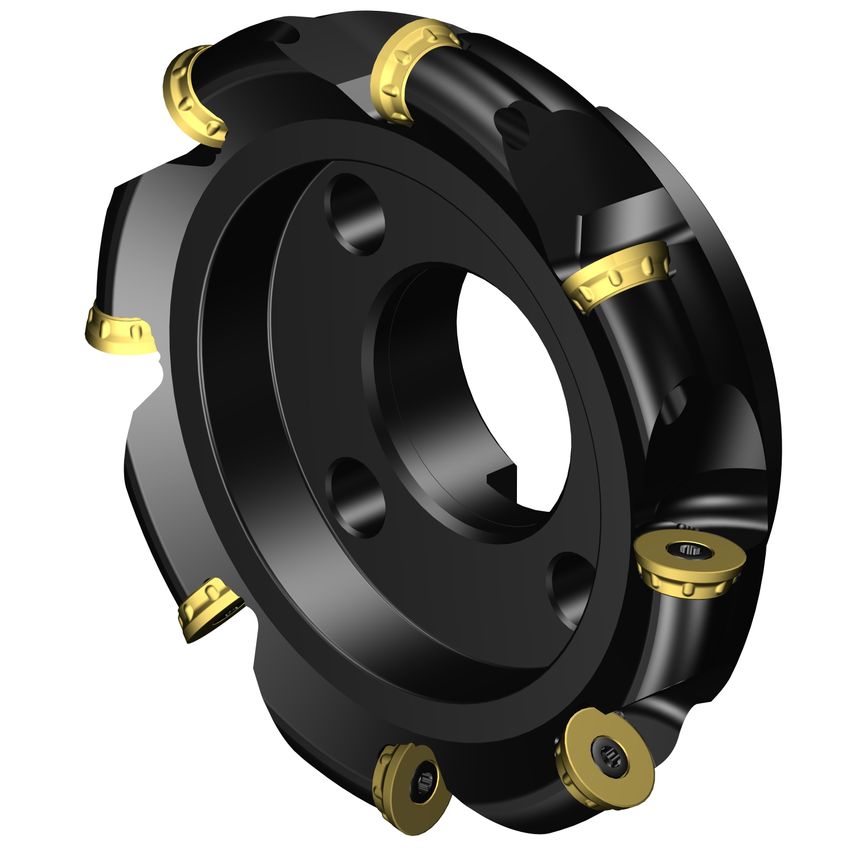

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 2.3\u00b0 |
| Functional Length | 63mm |
| Maximum Plunge Depth | 7mm |
| Rotational Speed Maximum | 7726 1/min |
| Damping Property | No |
| Standards Met | ISO6462 |
| Unit Measured | Imperial |
| Body Material | Steel |
| MFR Part No. | 5740334 |
| Hand Preference | Right |
| Weight | 5.73kg |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 177.8mm |
| Connection Diameter | 63.5mm |
| Maximum Cutting Diameter | 203.2mm |
| CoroPak | 9.2 |
