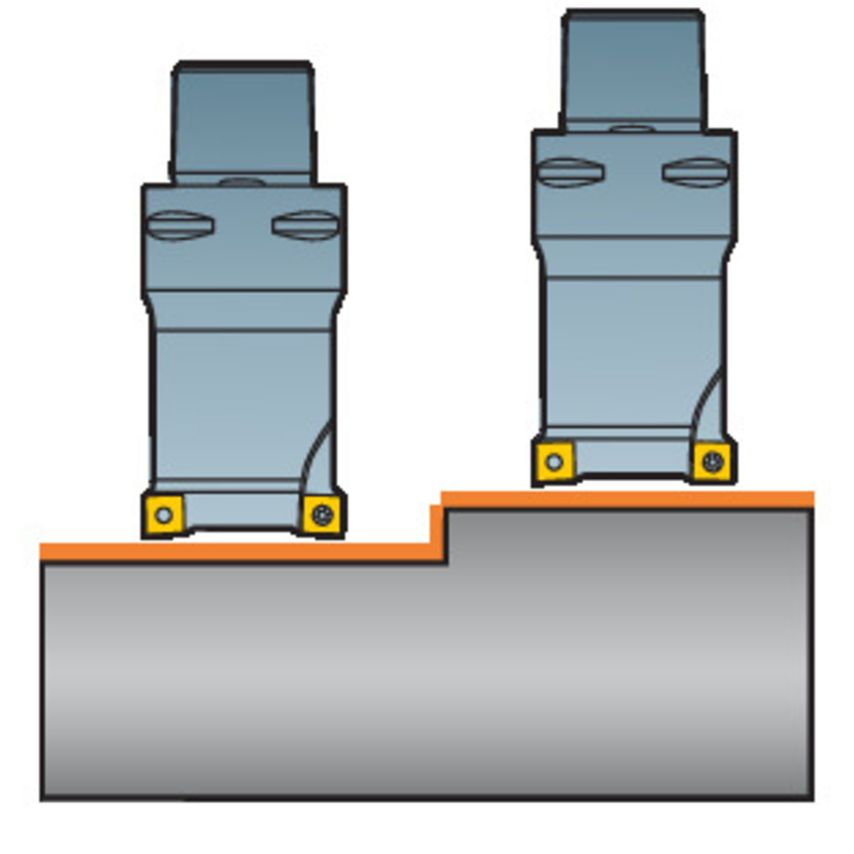

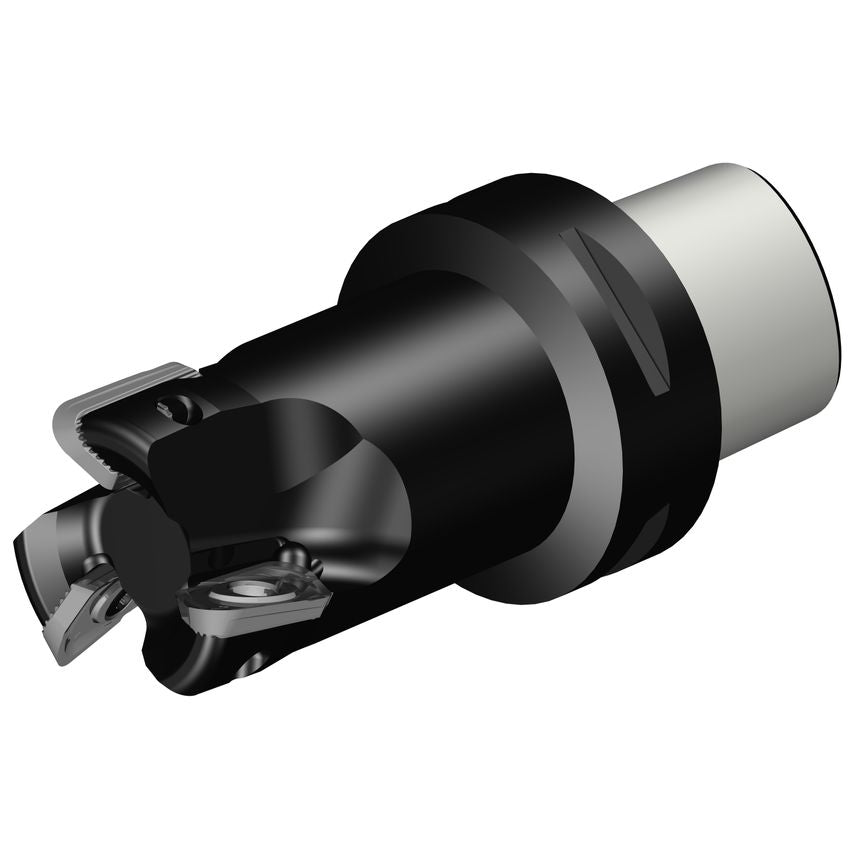

Product Range: CoroMill 790Tool Type: Shoulder millingShoulder milling cutters for aluminiumThe CoroMill 790 cutter is the first choice for ISO N materials. To be used in shoulder operations as a "super remover", it is designed for high security demands and high precision work.Features & Benefits- First choice for aluminium- 2 cutting edges- Serrated interface for precision and high-speed machining- Large radius assortment- Internal coolant

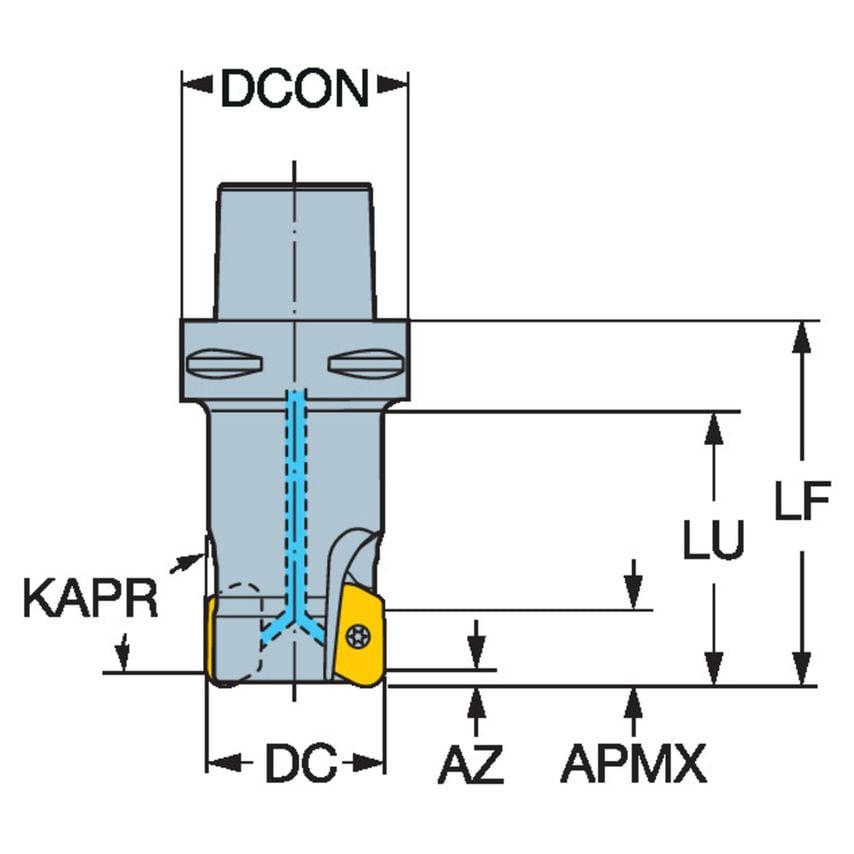

| Body Material | Steel |
| Weight | 1.5kg |
| Hand Preference | Right |
| Functional Diameter | 44mm |
| Max. Depth of Cut | 18mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Maximum Cutting Depth | 18mm |
| Maximum Plunge Depth | 3mm |
| Standards Met | ISO26623-1 |
| Functional Length | 12mm |
| Usable Length | 79.5mm |
| Through Hole Function Property | Yes |
| Connection Diameter | 1.52mm |
| Cutting Diameter | 29mm |
| Unit Measured | Imperial |
| Rotational Speed Maximum | 20000 1/min |
| CoroPak | 65 |
| Maximum Ramping Angle | 13\u00b0 |
| Damping Property | No |
| MFR Part No. | 5740368 |
