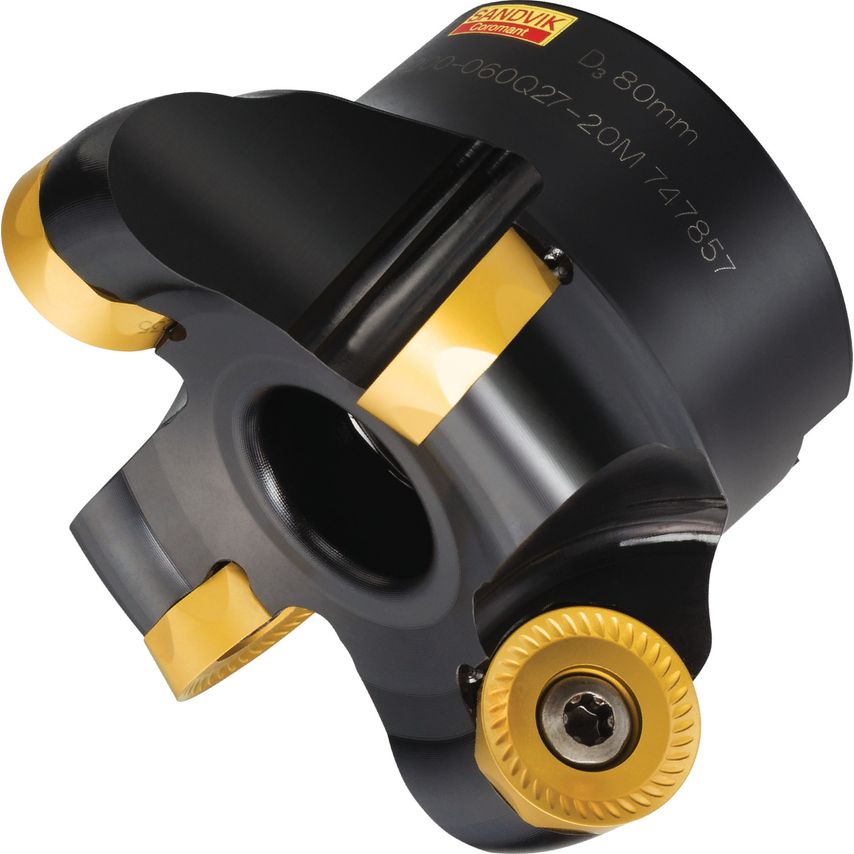

Tool type: Face millingRobust face milling and profile cutterCoroMill 200 is a very stable rougher and a versatile tool. It is a good choice for general milling as well as for die and mould-making and should be the first choice for roughing operations. Strong cutting edges make the cutter resistant to tough conditions with interruptions (holes, gaps etc.) and/or abrasive scale (skin).Features & Benfits- Round insert concept for secure first stage machining- 4 - 8 cutting edges- Shim for security- Cylindrical shank, Arbor, CIS Arbor, Whistle Notch or Weldon mounting- Process security and reliability

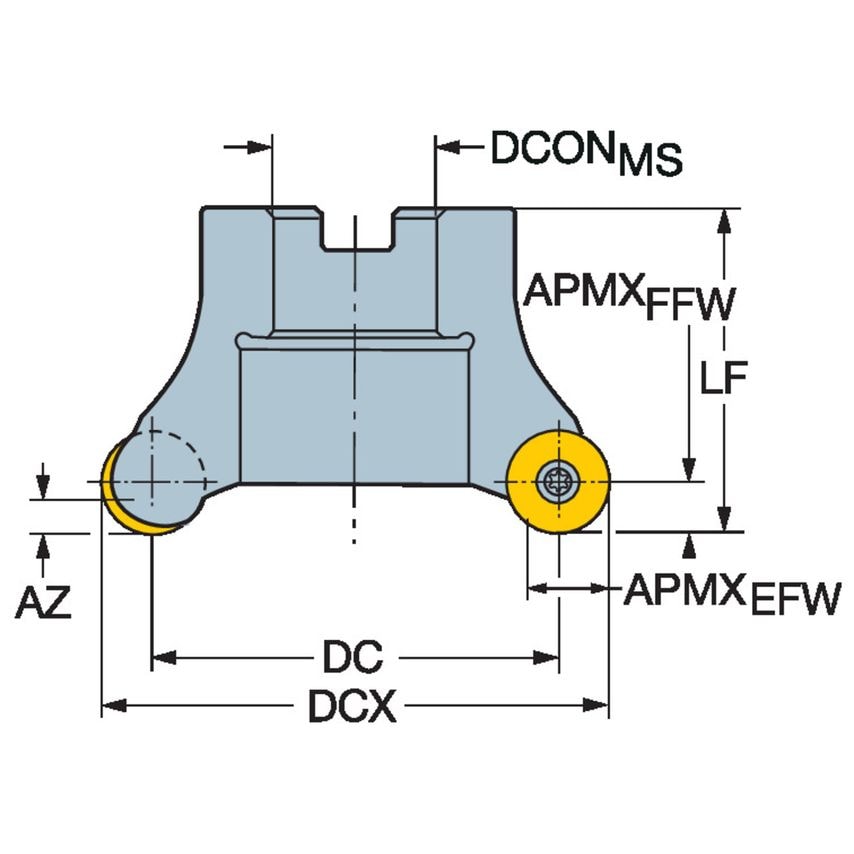

| Unit Measured | Imperial |
| Maximum Cutting Diameter | 101.6mm |
| Rotational Speed Maximum | 16200 1/min |
| CoroPak | 96.3 |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| MFR Part No. | 5738560 |
| Cutting Diameter | 88.9mm |
| Body Diameter | 4in |
| Functional Length | 50mm |
| Coolant Entry Style | Without Coolant |
| Standards Met | ISO6462 |
| Connection Diameter | 38.1mm |
| Weight | 1437g |
| Maximum Plunge Depth | 3.5mm |
| Maximum Ramping Angle | 2.5\u00b0 |
| Body Material | Steel |
| Damping Property | No |
