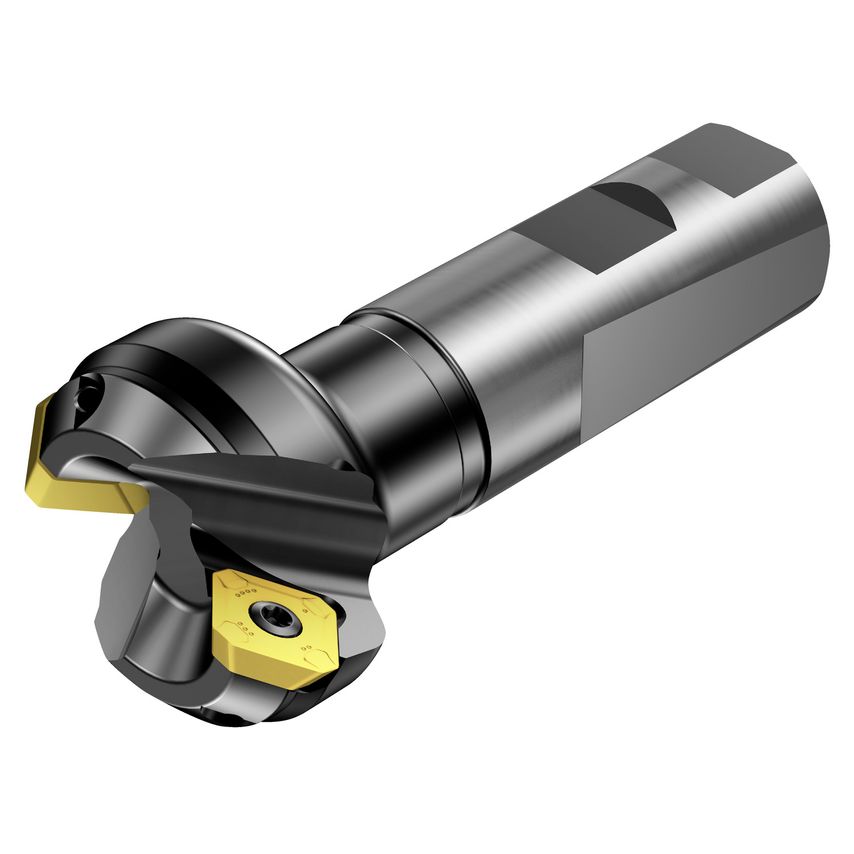

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials

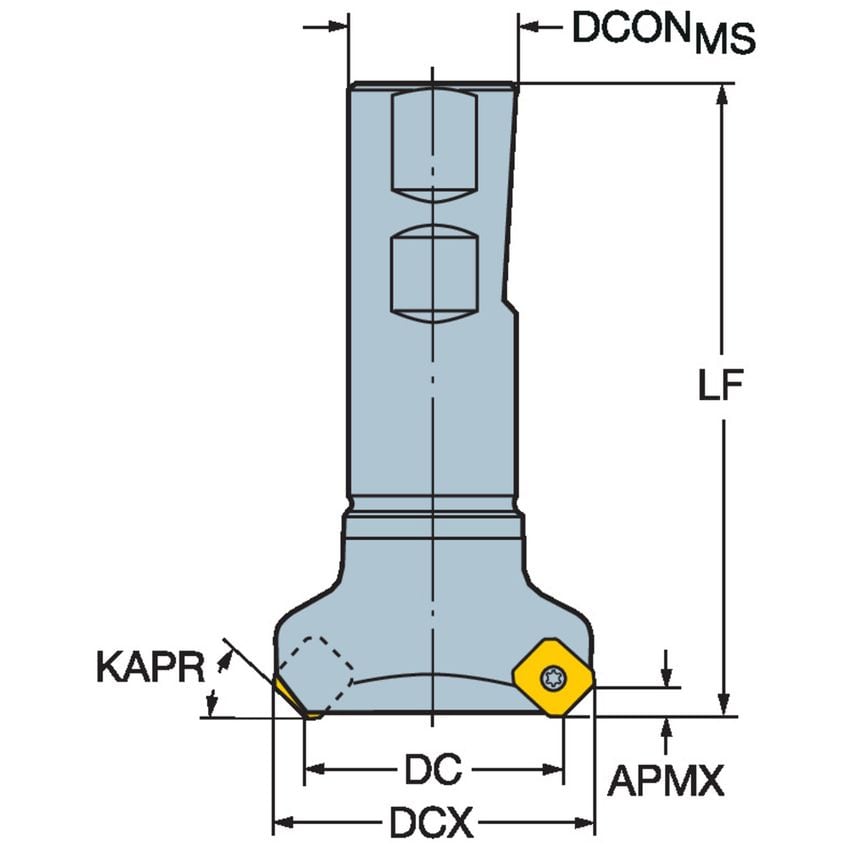

| Maximum Cutting Depth | 6.1mm |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 65mm |
| Maximum Ramping Angle | 0\u00b0 |
| MFR Part No. | 5738664 |
| Hand Preference | Right |
| Rotational Speed Maximum | 18250 1/min |
| Body Material | Steel |
| Damping Property | No |
| Unit Measured | Imperial |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 50.5968mm |
| Connection Diameter | 4.5mm |
| Functional Length | 98mm |
| Weight | 0.82kg |
| CoroPak | 55 |
| Tool Cutting Edge Angle | 45\u00b0 |
| Max. Depth of Cut | 6.1mm |
