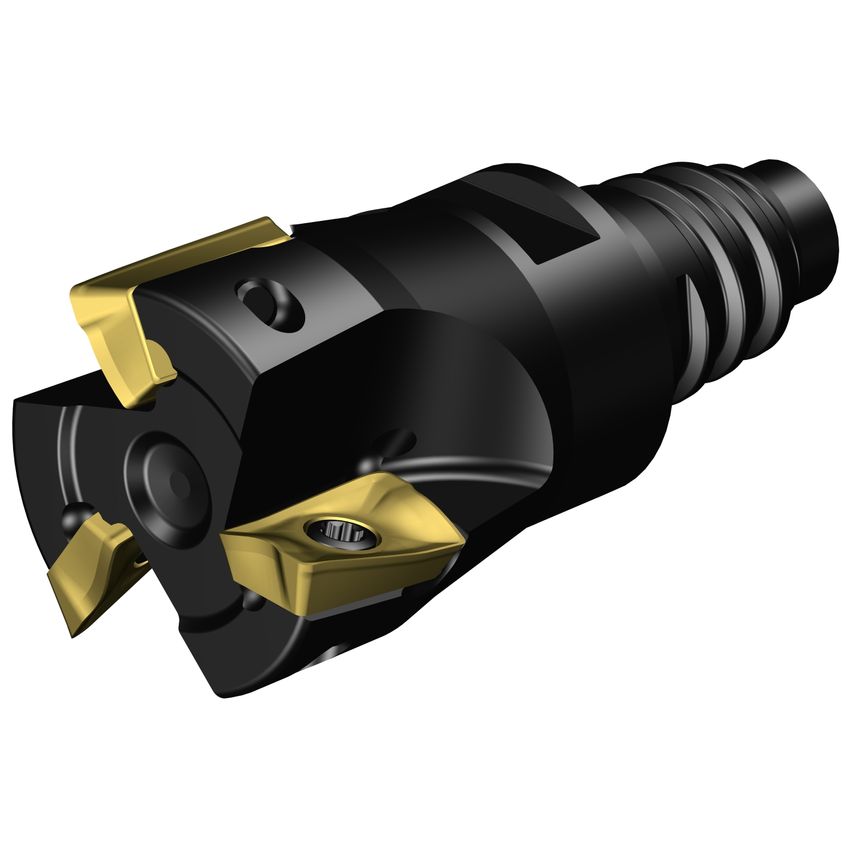

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Hand Preference | Right |
| Cutting Diameter | 9.5mm |
| Connection Diameter | 12mm |
| MFR Part No. | 6416922 |
| Functional Diameter | 17.66mm |
| Body Material | Steel |
| Through Hole Function Property | Yes |
| Damping Property | No |
| Maximum Cutting Depth | 15.7mm |
| Unit Measured | Imperial |
| Rotational Speed Maximum | 25700 1/min |
| Maximum Plunge Depth | 1.5mm |
| CoroPak | 23 |
| Coolant Entry Style | 1 |
| Weight | 0.15kg |
| Tool Cutting Edge Angle | 90\u00b0 |
| Functional Length | 40mm |
| Max. Depth of Cut | 15.7mm |
| Maximum Ramping Angle | 6.7\u00b0 |
