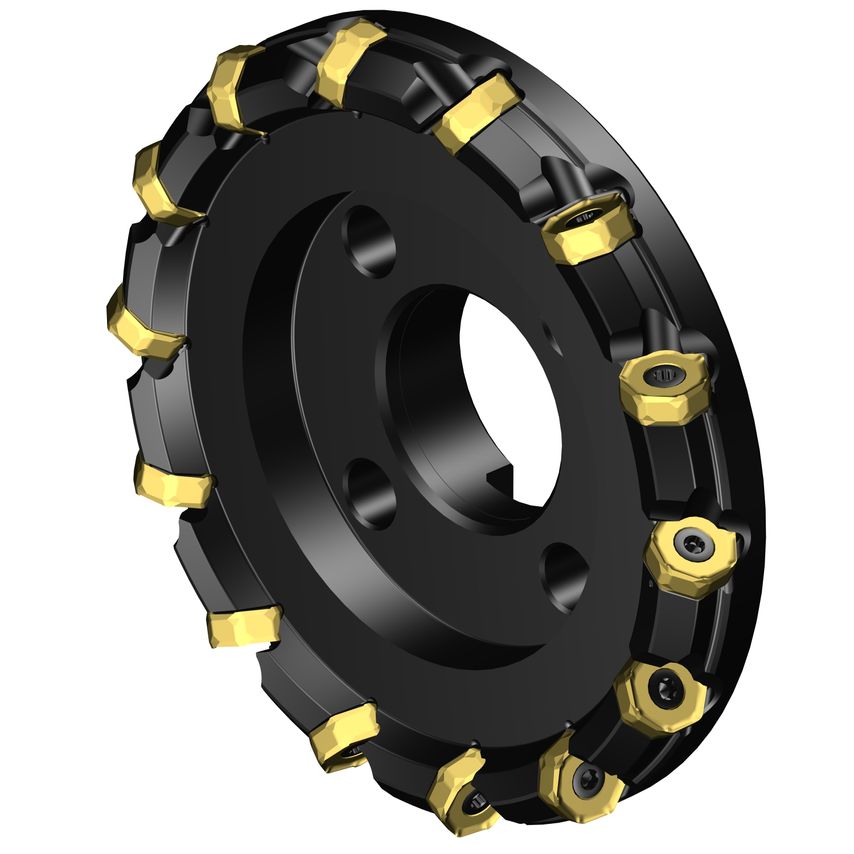

Product Range: CoroMill 745Tool Type: Face millingMulti-edge face milling cutter for best production economyFeatures & Benefits- First choice for production economy 14 cutting edges- Available for 42- and 25-degree lead angle- Internal coolant
| Standards Met | ISO6462 |
| Body Material | Steel |
| Max. Depth of Cut | 5.2mm |
| CoroPak | 16.1 |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 218.4mm |
| Unit Measured | Imperial |
| Functional Length | 63mm |
| Tool Cutting Edge Angle | 42\u00b0 |
| MFR Part No. | 6702271 |
| Cutting Diameter | 203.2mm |
| Maximum Cutting Depth | 5.2mm |
| Maximum Ramping Angle | 0\u00b0 |
| Hand Preference | Right |
| Weight | 6.29kg |
| Damping Property | No |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 63.5mm |
| Rotational Speed Maximum | 3296 1/min |
