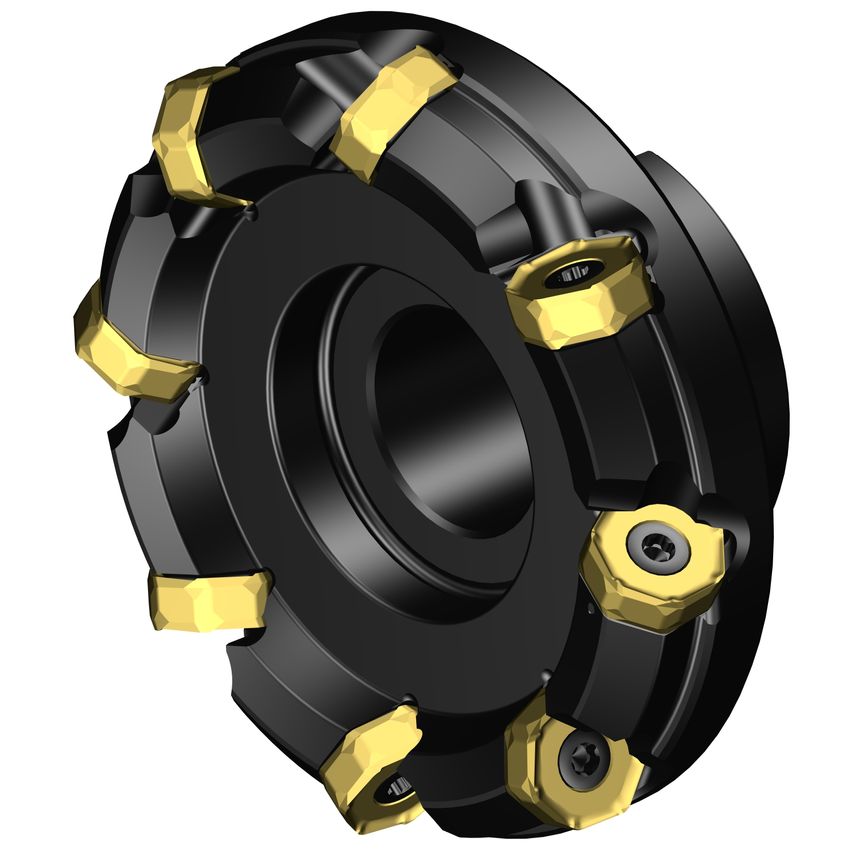

Product Range: CoroMill 745Tool Type: Face millingMulti-edge face milling cutter for best production economyFeatures & Benefits- First choice for production economy 14 cutting edges- Available for 42- and 25-degree lead angle- Internal coolant
| Unit Measured | Metric |
| Cutting Diameter | 125mm |
| Connection Diameter | 38.1mm |
| Weight | 3.19kg |
| Maximum Cutting Depth | 5.2mm |
| Max. Depth of Cut | 5.2mm |
| Maximum Cutting Diameter | 140.2mm |
| MFR Part No. | 6702279 |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Damping Property | No |
| Rotational Speed Maximum | 4216 1/min |
| Tool Cutting Edge Angle | 42\u00b0 |
| Maximum Ramping Angle | 0\u00b0 |
| Body Material | Steel |
| Functional Length | 63mm |
| CoroPak | 16.1 |
| Hand Preference | Right |
