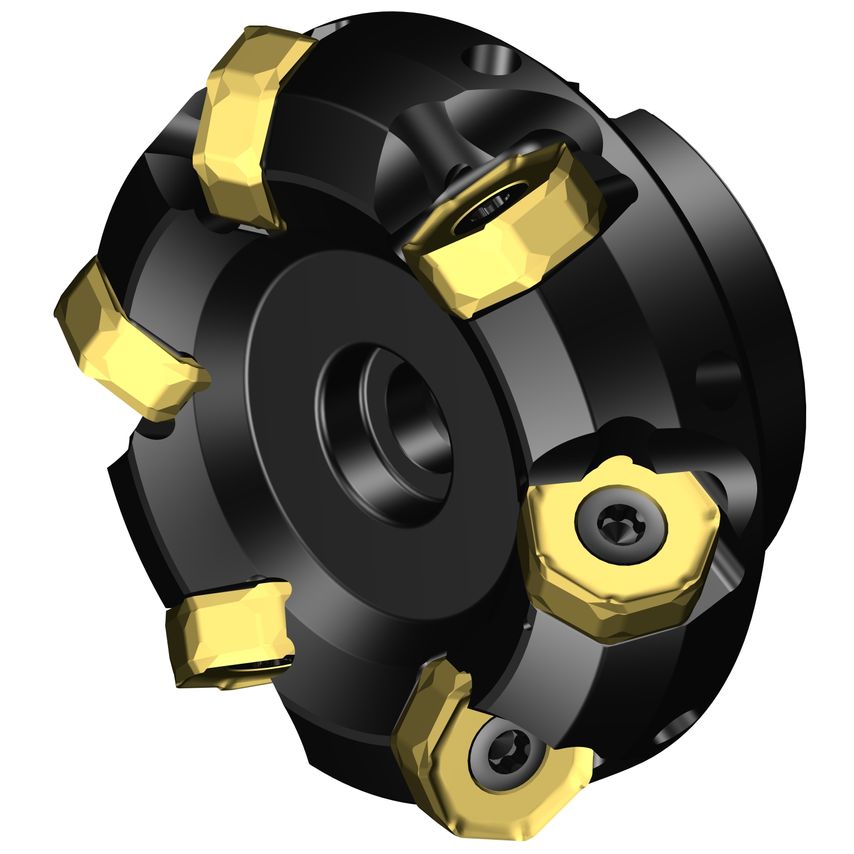

Product Range: CoroMill 745Tool Type: Face millingMulti-edge face milling cutter for best production economyFeatures & Benefits- First choice for production economy 14 cutting edges- Available for 42- and 25-degree lead angle- Internal coolant
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Tool Cutting Edge Angle | 25\u00b0 |

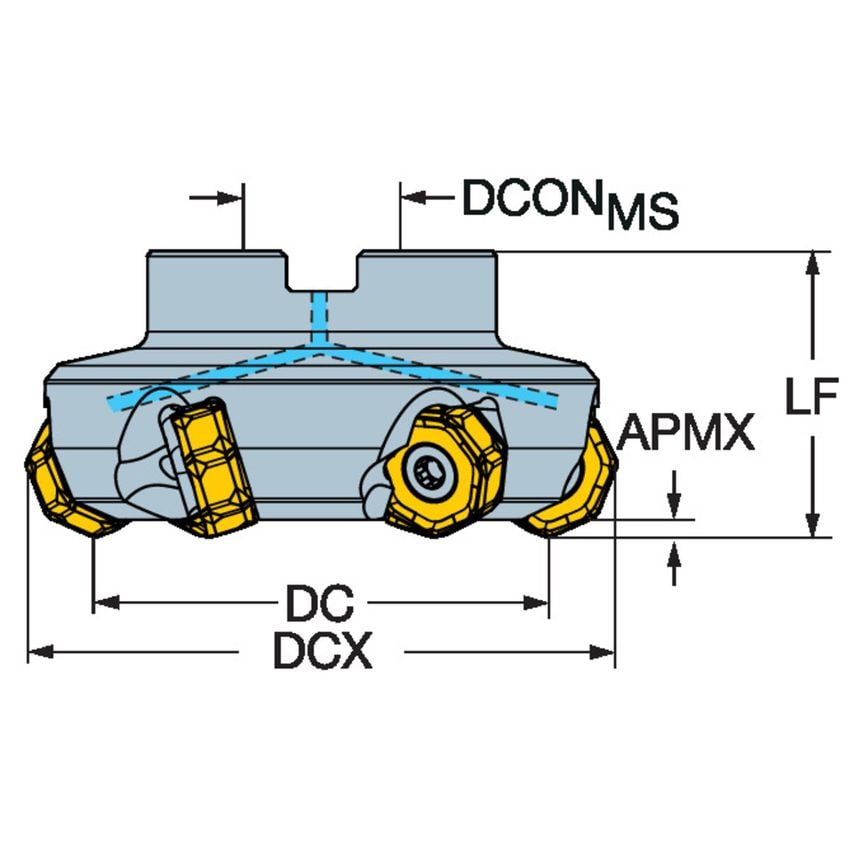

| Cutting Diameter | 76.2mm |
| CoroPak | 17.1 |
| Maximum Cutting Depth | 2.8mm |
| Damping Property | No |
| Rotational Speed Maximum | 5324 1/min |
| MFR Part No. | 6702314 |
| Functional Length | 50mm |
| Max. Depth of Cut | 2.8mm |
| Hand Preference | Right |
| Standards Met | ISO6462 |
| Weight | 1.33kg |
| Maximum Ramping Angle | 0\u00b0 |
| Maximum Cutting Diameter | 99.6mm |
| Connection Diameter | 25.4mm |
| Body Material | Steel |
