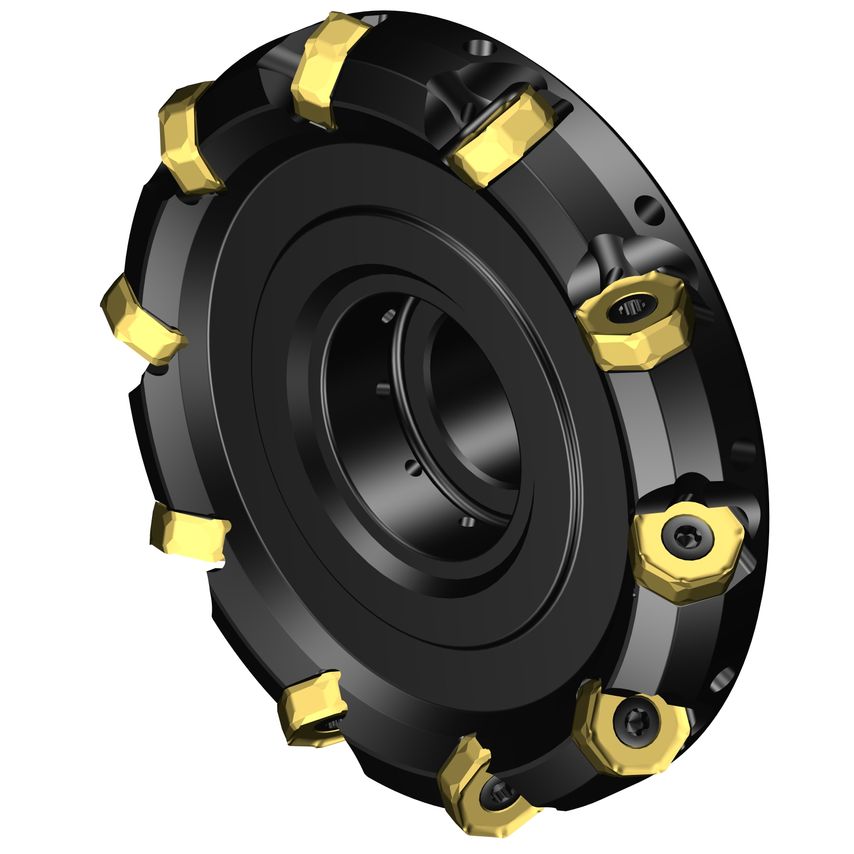

Product Range: CoroMill 745Tool Type: Face millingMulti-edge face milling cutter for best production economyFeatures & Benefits- First choice for production economy 14 cutting edges- Available for 42- and 25-degree lead angle- Internal coolant

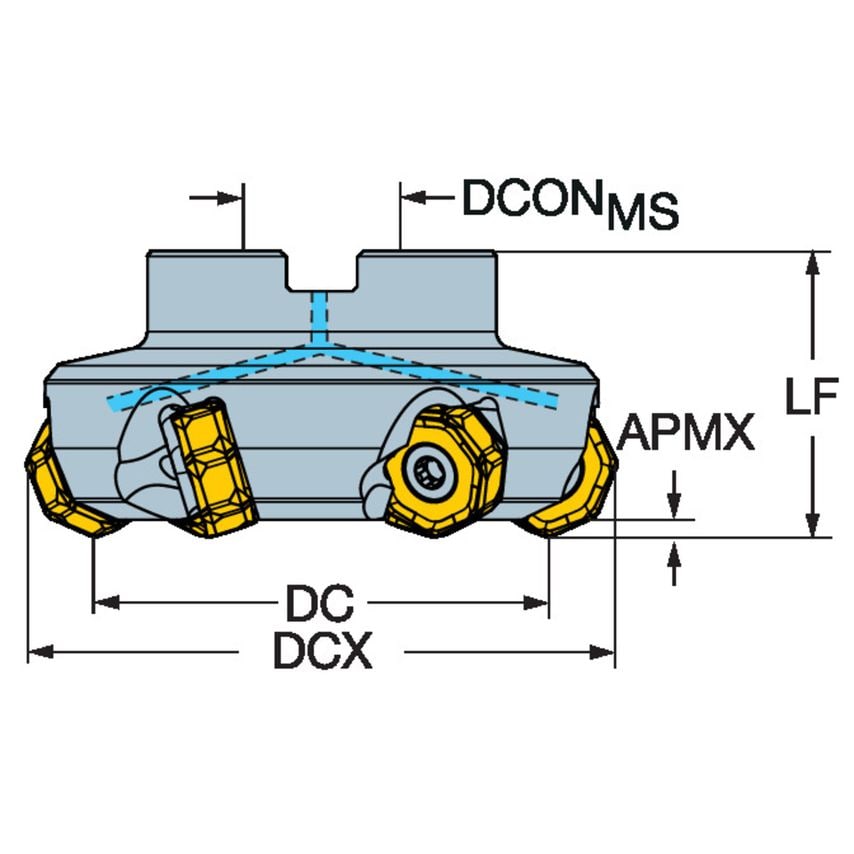

| Functional Length | 63mm |
| Weight | 4.53kg |
| CoroPak | 17.1 |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Standards Met | ISO6462 |
| Max. Depth of Cut | 2.8mm |
| Cutting Diameter | 152.4mm |
| Maximum Cutting Diameter | 175.8mm |
| MFR Part No. | 6702320 |
| Body Material | Steel |
| Rotational Speed Maximum | 3675 1/min |
| Damping Property | No |
| Tool Cutting Edge Angle | 25\u00b0 |
| Maximum Cutting Depth | 2.8mm |
| Connection Diameter | 38.1mm |
| Unit Measured | Imperial |
| Hand Preference | Right |
