Product Range: CoroMill 425CoroMill 425 is a new finishing concept for cast iron face milling, specifically designed for the automotive business. The accurate and reliable adjustment system makes CoroMill 425 the easiest to use system on the market. It has eight cutting edges, and the same multi-edge inserts are used both as working inserts and as wiper inserts, mounted in the same position.Features & Benefits- First choice for finishing in cast iron- 8 cutting edges- High precision adjustment system for wiper insertsApplication- Engine blocks- Cylinder heads- Finish face milling in cast iron
| Damping Property | No |
| Coolant Entry Style | Without Coolant |
| Hand Preference | Left |
| Weight | 30kg |
| Rotational Speed Maximum | 1170 1/min |
| Maximum Cutting Depth | 0.9mm |
| Unit Measured | Imperial |
| Through Hole Function Property | Yes |
| Max. Depth of Cut | 0.9mm |
| MFR Part No. | 6717982 |
| CoroPak | 16.2 |
| Maximum Ramping Angle | 0\u00b0 |

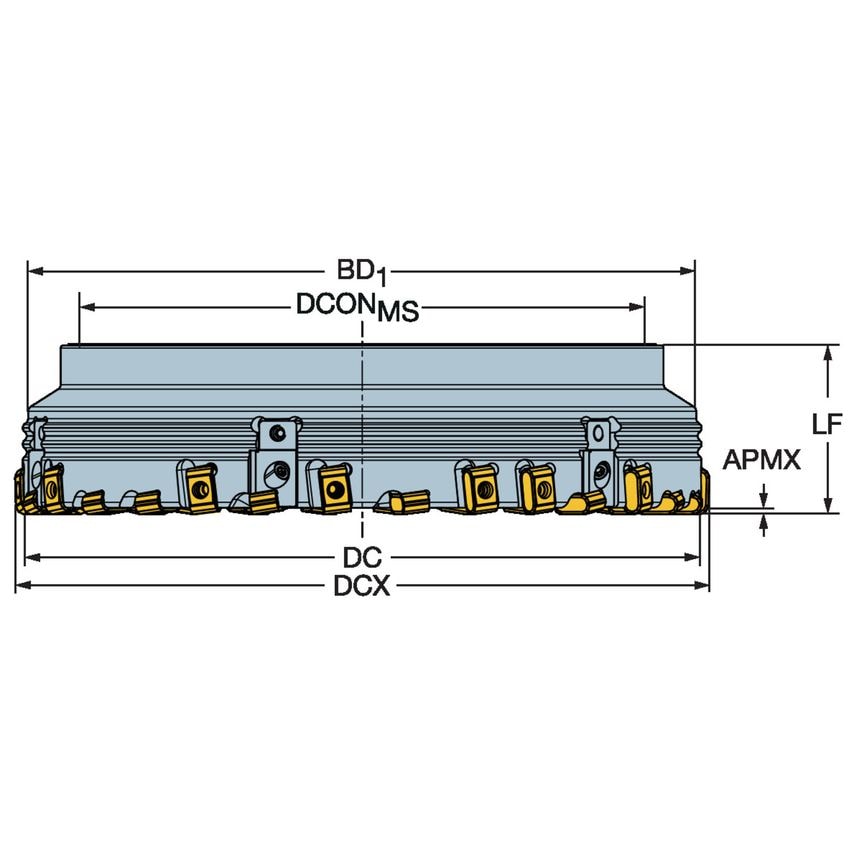

| Connection Diameter | 353.65mm |
| Functional Length | 63mm |
| Body Diameter | 16.04in |
| Maximum Cutting Diameter | 413.4mm |
| Tool Cutting Edge Angle | 25\u00b0 |
| Body Material | Steel |
| Cutting Diameter | 406.4mm |
