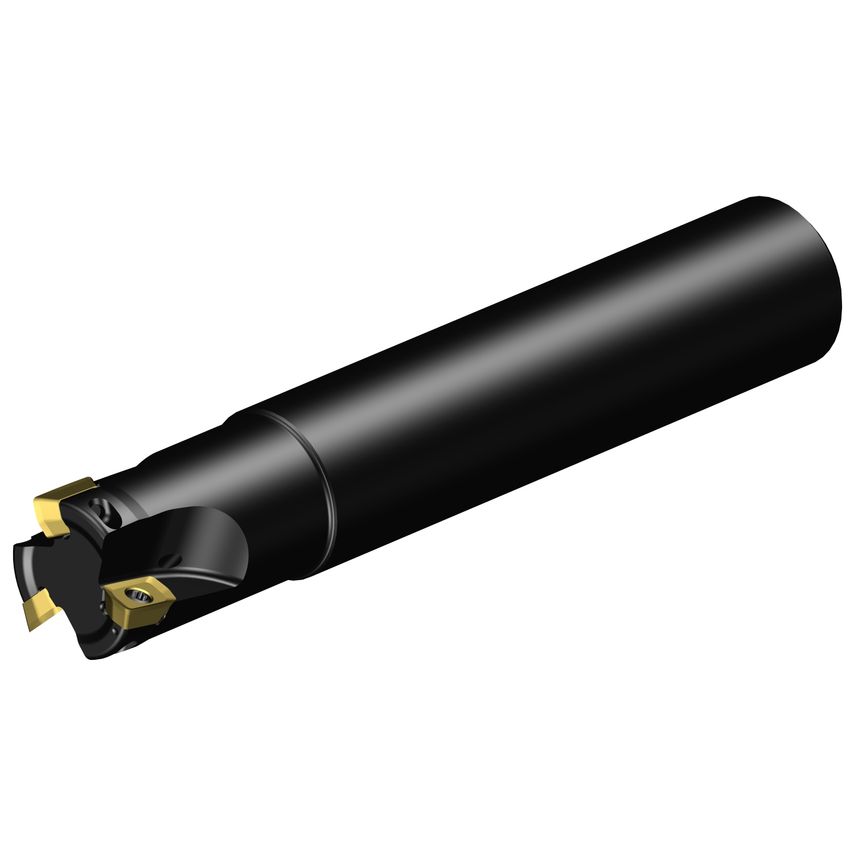

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Body Diameter | 0.59in |
| Rotational Speed Maximum | 37800 1/min |
| Maximum Ramping Angle | 3\u00b0 |
| MFR Part No. | 6851126 |
| Maximum Plunge Depth | 0.5mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Through Hole Function Property | Yes |
| Damping Property | No |
| Functional Length | 90mm |
| Coolant Entry Style | 1 |
| Unit Measured | Imperial |
| CoroPak | 100 |
| Weight | 0.12kg |
| Body Material | Steel |
| Hand Preference | Right |
| Max. Depth of Cut | 5.8mm |
| Cutting Diameter | 4.8mm |
| Usable Length | 25mm |
| Connection Diameter | 25.4mm |
| Maximum Cutting Depth | 5.8mm |
