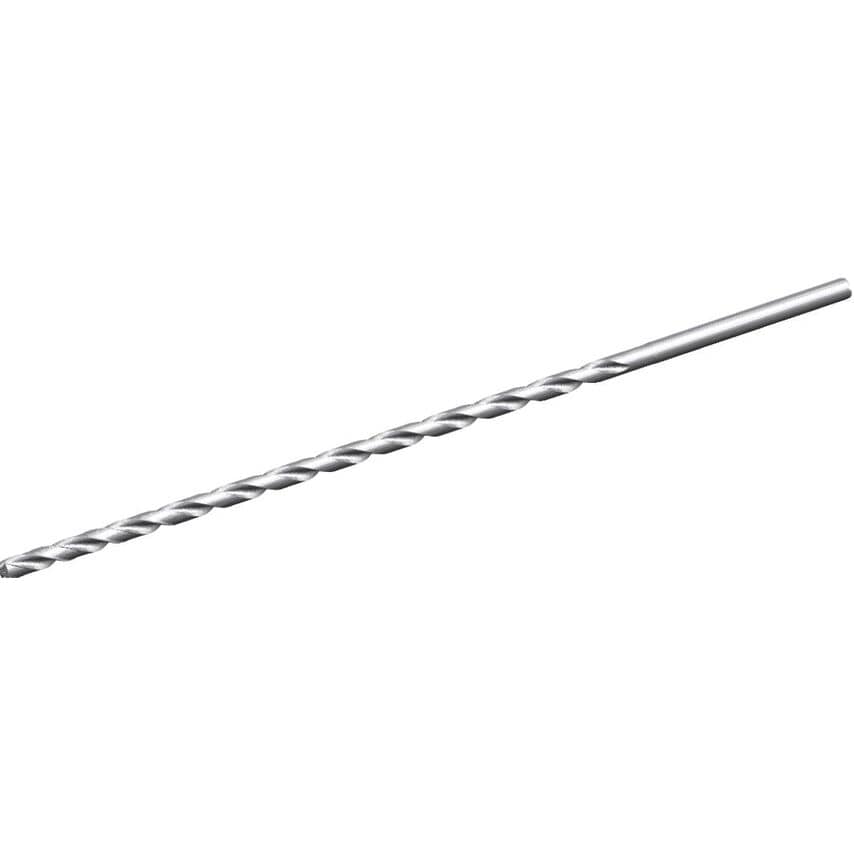

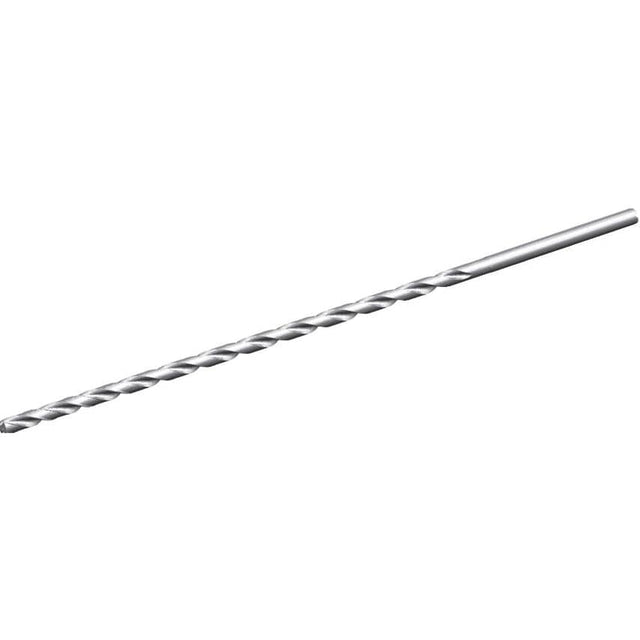

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| MFR Part No. | 3867875 |
| Drill Point | 1.11mm |
| Coolant Diameter | 0.7000mm (0.0472in) |
| Clamping Length | 36mm |
| Drill Depth | 180mm | 180.0000mm |
| Helix Angle | 29.999 |
| Hand Preference | Right |
| Finish/Coating | Uncoated |
| Coolant Supplied | Yes |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Shank Length | 36.0000mm |
| Flute Length | 194mm | 194.0000mm |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Assembly Length | 204.89mm |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Type | Right Hand Helix/Flute |
| Flute Construction | Helical Flute |
| Drill Diameter | 6.0000mm |
| Functional Length | 231.8900mm |
| Adapter Style | Straight-Cylindrical |
| Unit Measured | Metric |
| Overall Length | 233mm | 233.0000mm |
| Adapter Type | Cylindrical |
