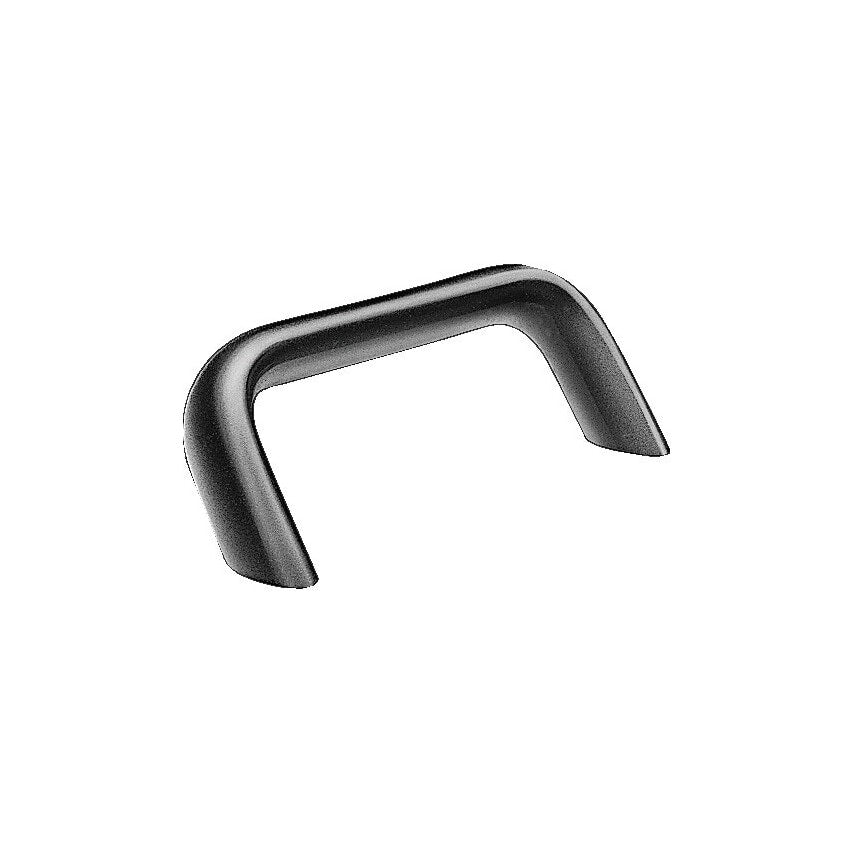

Constructed from a bent Aluminium profile, these tough, inclined, Cabinet U shape Handles are designed with simplicity and stability in mind. The angled contact surface allows improved access even in tight spaces such as corners. With a plain, tumbled finish finish, they add a clean and sturdy look when applied to your doors. Type A are mounted from the back (threaded blind bore).
Features and Benefits:
Aluminium Inclined construction giving it a sturdy yet space saving ability
Plain, tumbled finish for endurance and durability
| Finish | Uncoated |
| Product Type | Cabinet U Handle |
| MFR Part No. | GN565.2-26-128-BL |

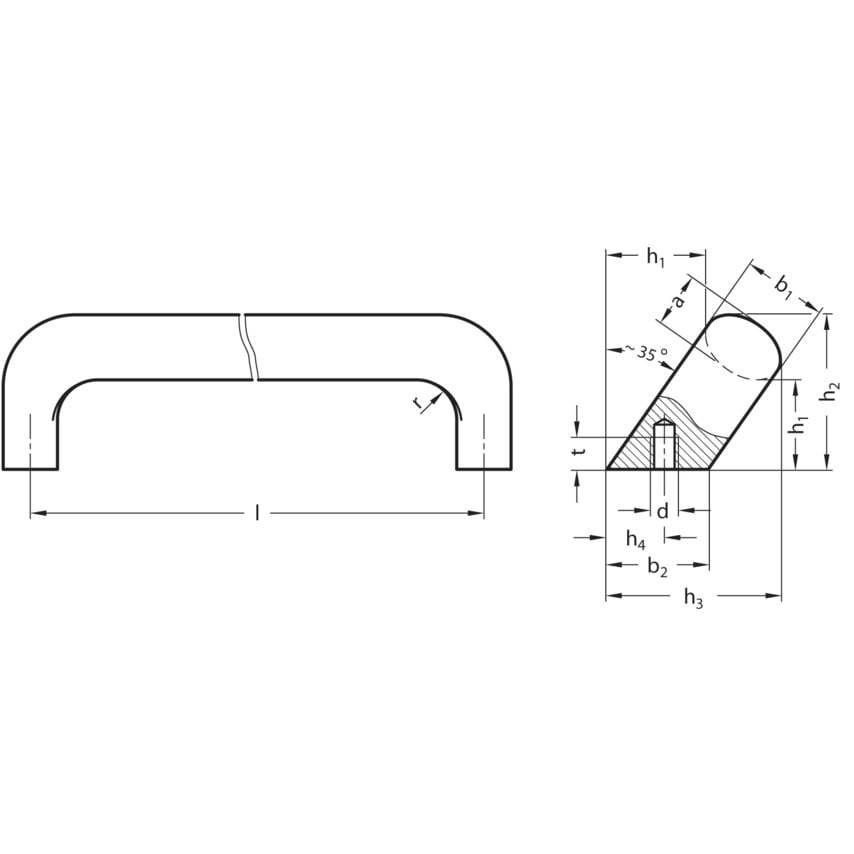

| B1 | 26mm |
| D | M8mm |
| t min | 12mm |
| h1 | 34mm |
| L | 128mm |
| Type | BL |
| Material | Plastic Coated |
| h4+1 | 18.0mm |
| R | 17mm |
| A | 17mm |
| Colour | Black - RAL9005 |
| h2 | 54mm |
| h3 | 57mm |
| B2 | 32mm |
