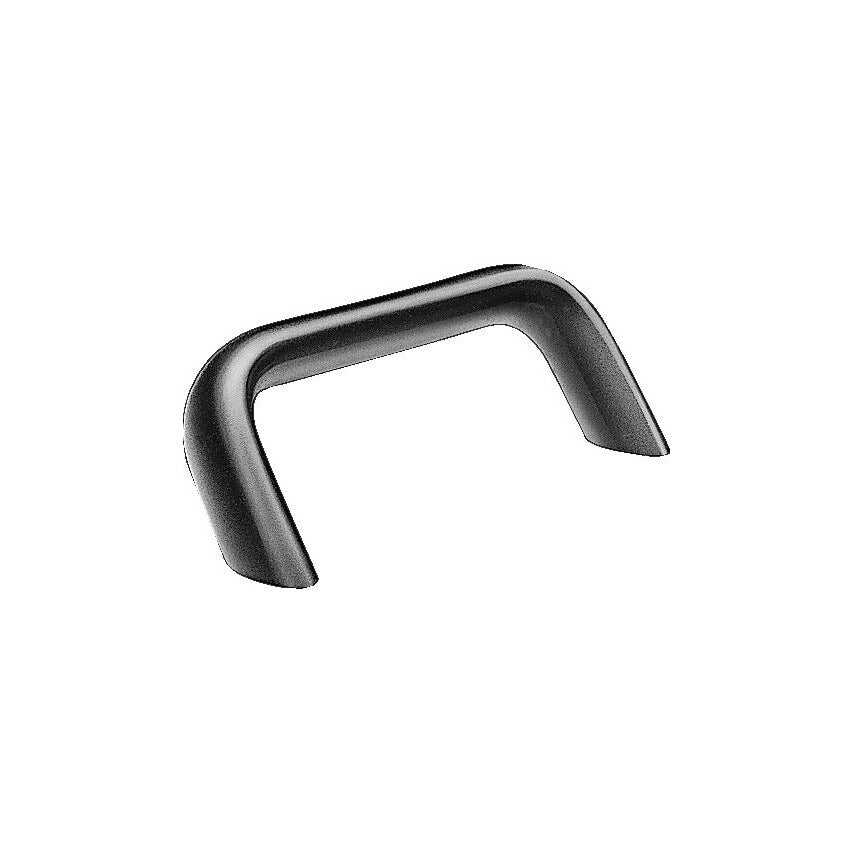

Constructed from a bent Aluminium profile, these tough, inclined, Cabinet U shape Handles are designed with simplicity and stability in mind. The angled contact surface allows improved access even in tight spaces such as corners. With a plain, tumbled finish finish, they add a clean and sturdy look when applied to your doors. Type A are mounted from the back (threaded blind bore).
Features and Benefits:
Aluminium Inclined construction giving it a sturdy yet space saving ability
Plain, tumbled finish for endurance and durability

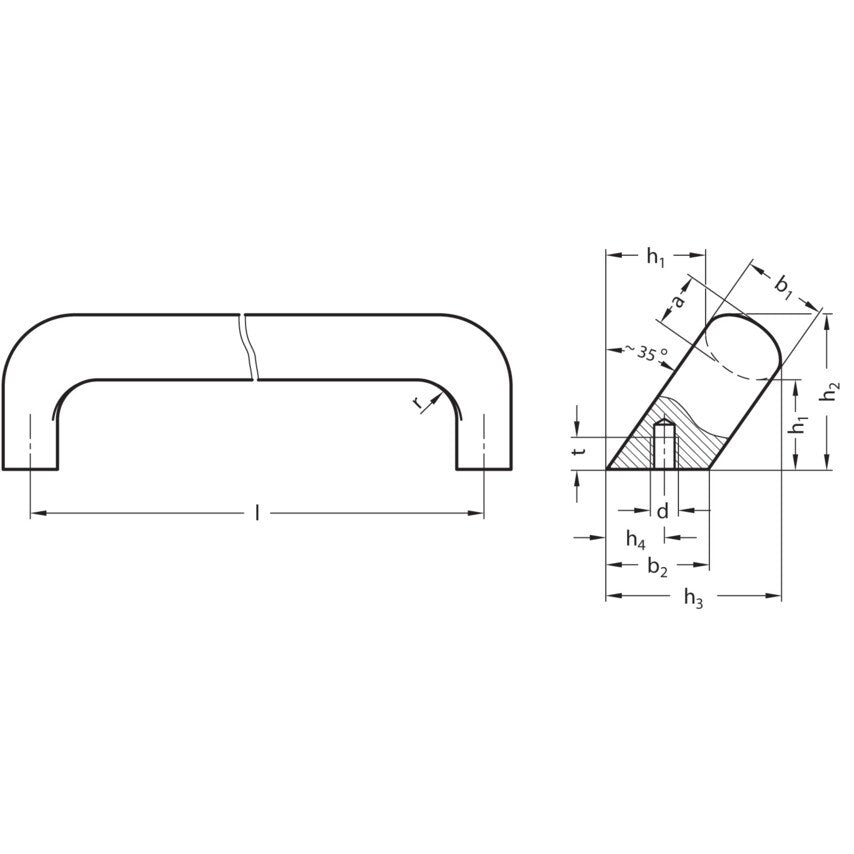

| Colour | Black - RAL9005 |
| h3 | 50mm |
| h4+1 | 13.5mm |
| R | 13mm |
| B1 | 20mm |
| Finish | Textured |
| h1 | 32mm |
| h2 | 48mm |
| A | 13mm |
| t min | 10mm |
| B2 | 24mm |
| Type | BL |
| L | 128mm |
| D | M6mm |
| Product Type | Cabinet U Handle |
| Material | Aluminium |
| Coating | Uncoated |
| MFR Part No. | GN565.2-20-128-BL |
