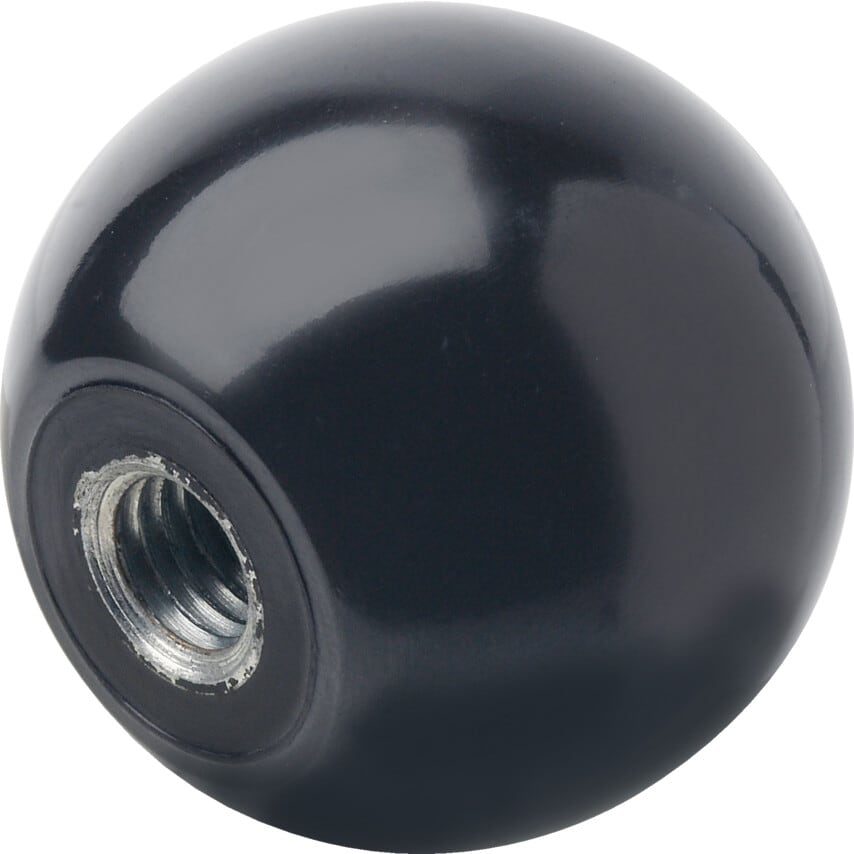

These Ball knobs are constructed using a Duroplast (Phenolic PF), which gives great heat and cold resistance as well as Oil and grease resistance. This makes these a strong and durable part. Especially suited for mechanical function components and mechanical engineering, these knobs have many more uses, from cabinet doors to wheel turning these knobs are a great addition or replacement to your old components.
Features and Benefit:
Temperature resistant -20 C to 180 C so can be used in high temperature machinery or in cold environment areas
Resistant to Oil, greases, weak Acids, Petrol and Alcohol for better and wider range of uses
Zinc plated Steel bushing provides that added resistance to corrosion from things such as petrol or alcohol
Typical Applications:
Mechanical engineering
Thermally Insulating Operating Elements
Cabinet and storage solutions
Automotive solutions

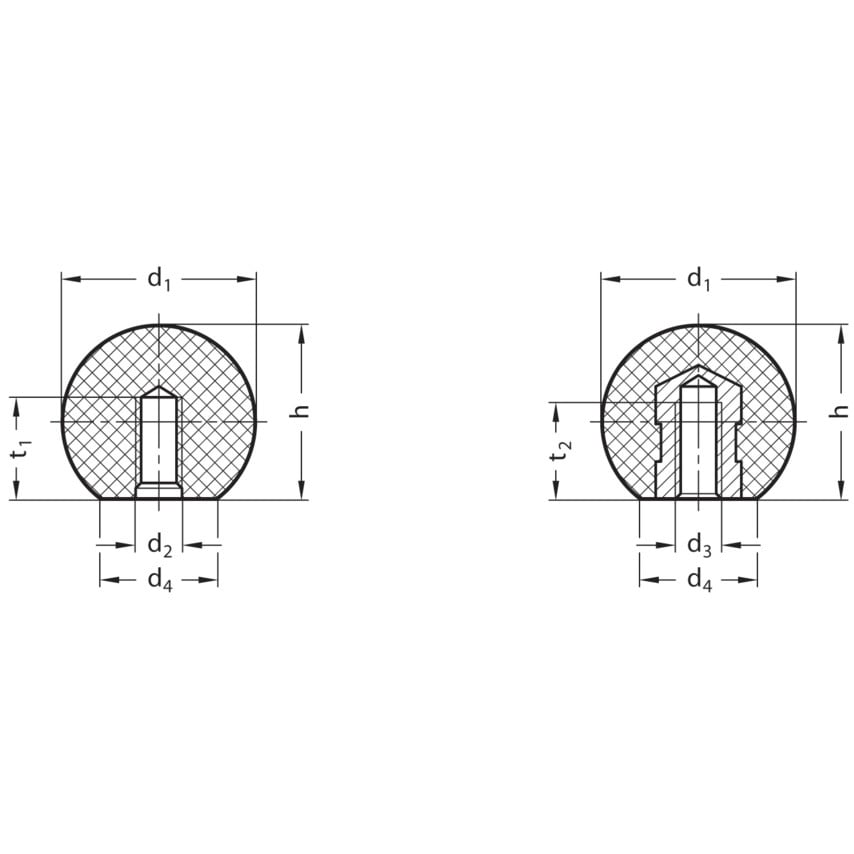

| MFR Part No. | DIN319-KU-25-M4-E |
| D1 | 25mm |
| Material | Steel |
| Product Type | Ball Knobs |
| Type | E - with Threaded Bushing |
| Colour | Black |
| d4 | 15mm |
| t1 min | 9.0mm |
| D2 | M6mm |
| t2 min | 9.0mm |
| Finish | Black Matt |
| H | 22.5mm |
