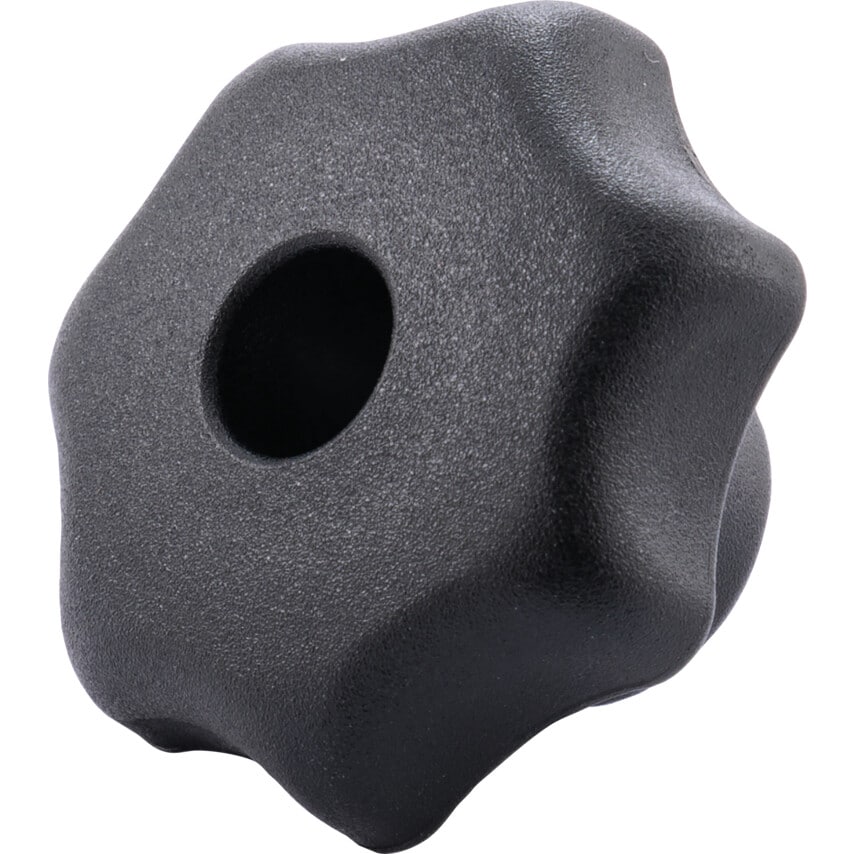

These Star shape knobs are constructed using a Technopolymer (Polyamide PA), which gives great impact stress resistance as well as heat and cold resistance. This makes these a strong, robust and durable component. Especially suited for mechanical function components and mechanical engineering, these knobs have many more uses, from cabinet doors to wheel turning these knobs are a great addition or replacement to your old components. The recessed, star shaped head gives extra grip to enable more torque to fasten the knob in place.
Features and Benefit:
Impact stress resistant to avoid breakages when accidental heavy contact is made
Temperature resistant -40 C to 180 C so can be used in high temperature machinery or in cold environment areas
Zinc plated , blue passivated through bushing provides that added stability and also the option for more fitting applications
Typical Applications:
Mechanical engineering
Automotive solutions

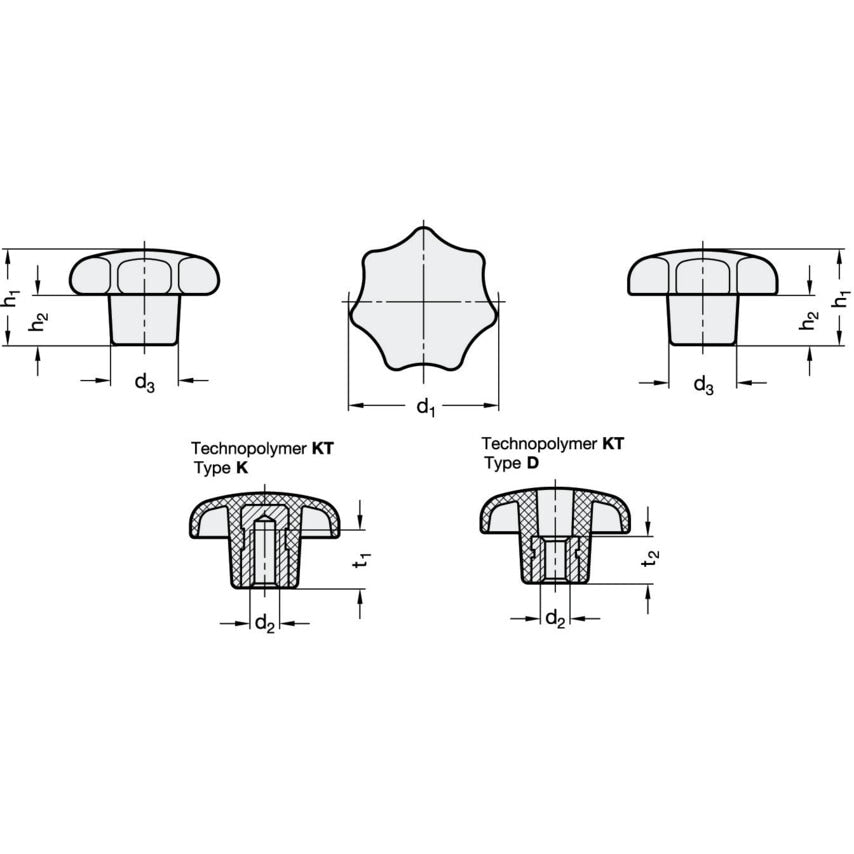

| h2 | 13mm |
| t1 min | 14mm |
| D1 | 40mm |
| MFR Part No. | DIN6336-KT-40-M8-D |
| t2 | 13mm |
| h1 | 25mm |
| d3 | 18mm |
| Type | D - with Threaded Trough Bore |
| D2 | M8mm |
