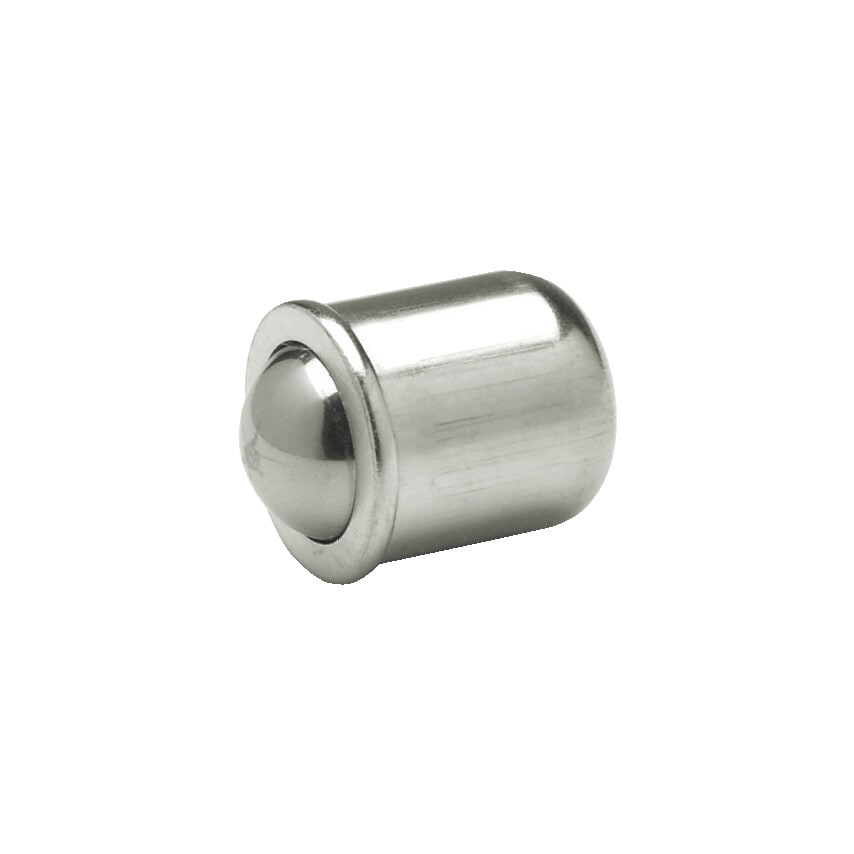

Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.
-Housing and ball constructed from NI stainless steel
-AISI 305 / 420C
-Housing sheet-metal
-Ball hardened
| Product Type | Spring Plunger |
| Ball Material | Stainless Steel |
| Type | NI Stainless Steel |
| MFR Part No. | GN614-12-NI |

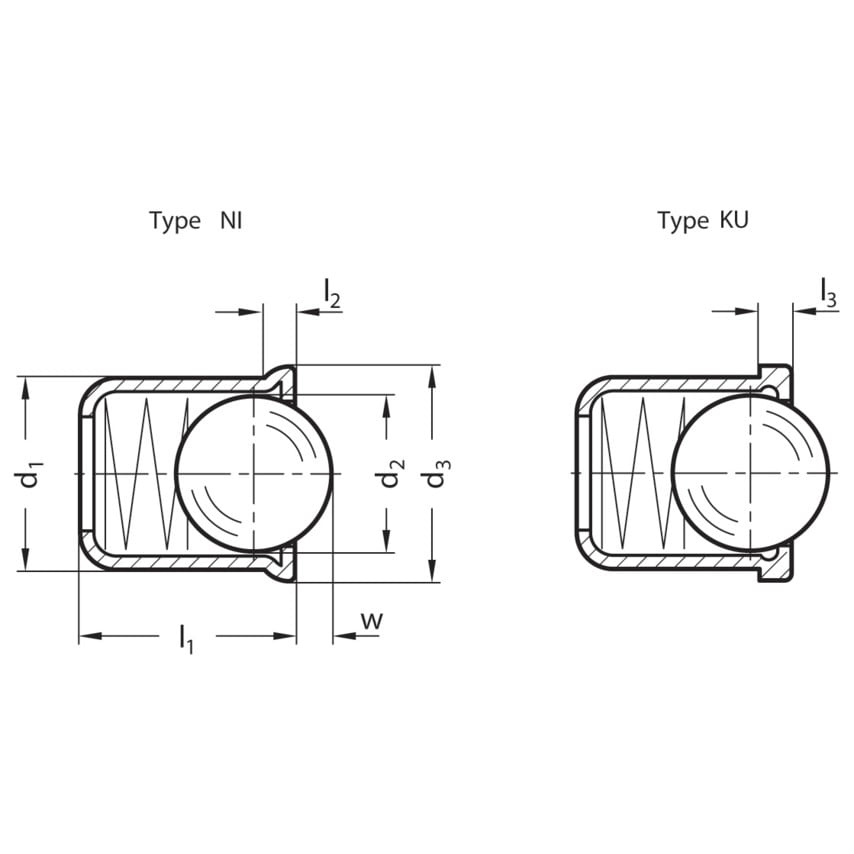

| d3 | 13.0mm |
| w compression | 4.0mm |
| Material | Stainless Steel |
| d1+0.1 | 12mm |
| L2 | 2.30mm |
| l1 | 16mm |
| D2 | 10.0mm |
