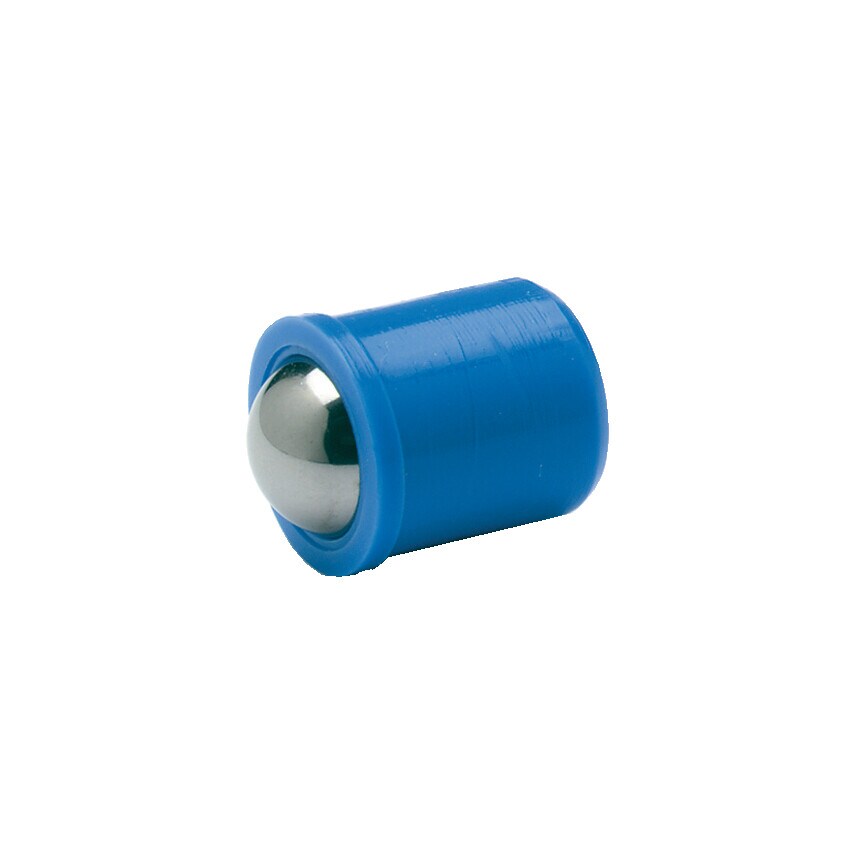

GN 614 spring plungers are used as detents as well as for push-on and push-off applications and ejectors.
Features:
-Type KU plastic Technopolymer (Polyacetal POM) housing
-Stainless steel AISI 420C hardened ball
-Temperature resistant up to +50C

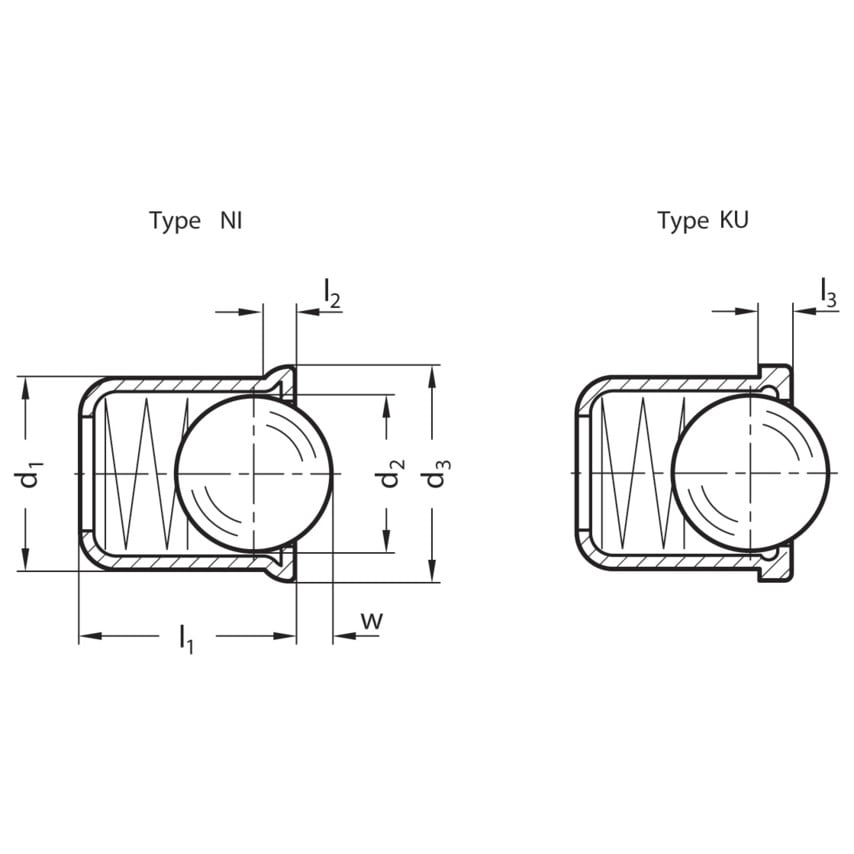

| d1+0.1 | 12mm |
| Ball Material | Stainless Steel |
| Material | Plastic |
| MFR Part No. | GN614-12-KU |
| d3 | 13.0mm |
| D2 | 10.0mm |
| l1 | 16mm |
| l3 \u00b10.1 | 1.5mm |
| Type | KU Plastic |
| w compression | 3.3mm |
