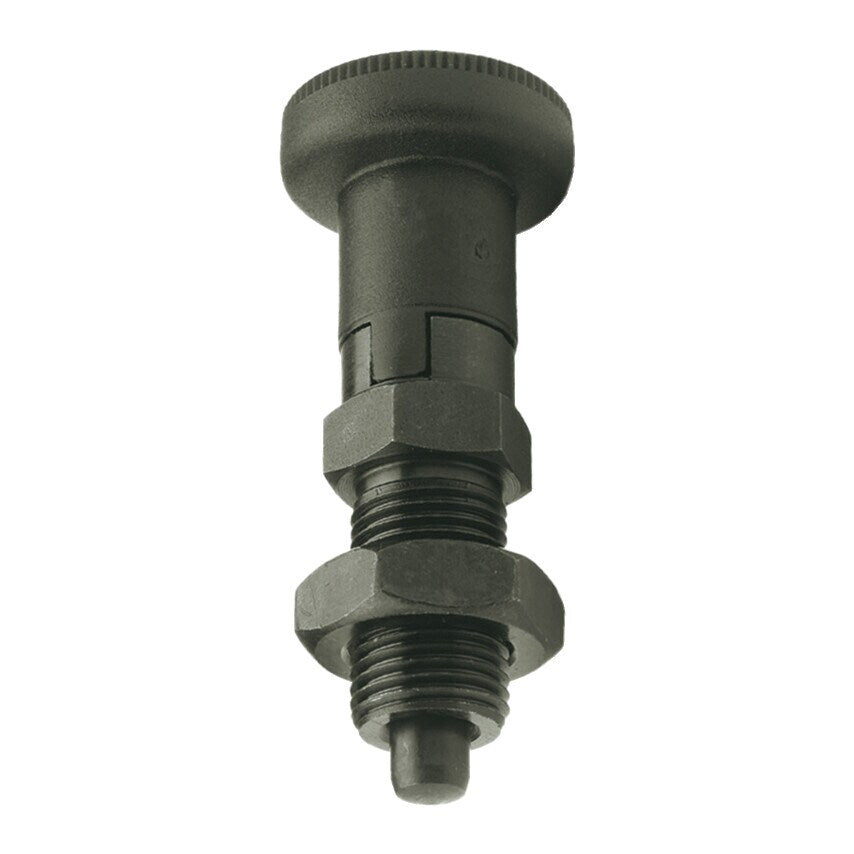

GN 617.1 indexing plungers are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.
Features:
-AK steel construction with lock nut and plastic knob
-Blackened
-Pin hardened

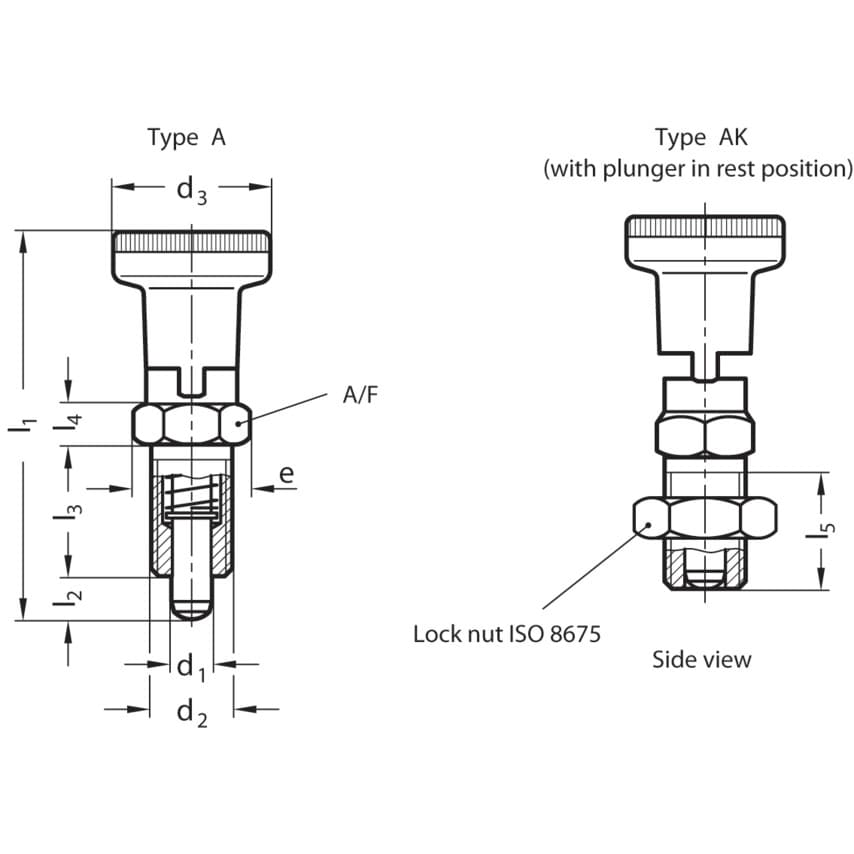

| MFR Part No. | GN617.1-6-AK-NI |
| Material | Stainless Steel |
| L4 | 6mm |
| d3 | 25mm |
| l1 | 61.0mm |
| l2 min | 6mm |
| l5 min | 17mm |
| L3 | 20mm |
| E | 16.2mm |
| A/F | 14mm |
| Type | AK Steel |
| Surface Treatment | Nickel Plated |
| D2 | M12+1.5mm |
| D1 | 6mm |
