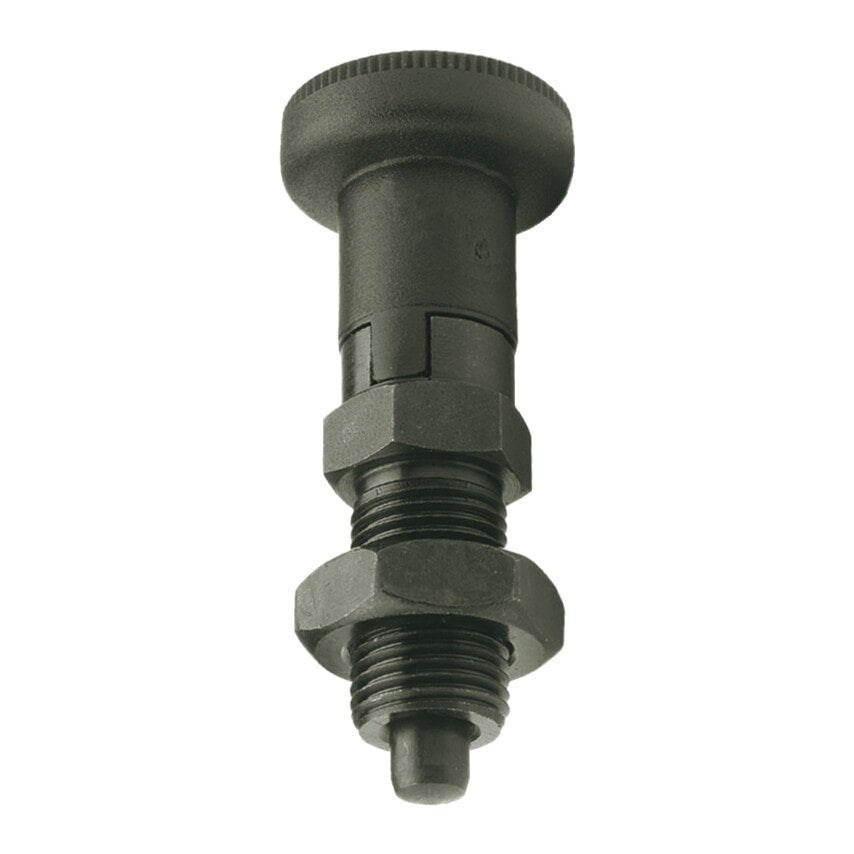

GN 617.1 indexing plungers are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.
Features:
-AK steel construction with lock nut and plastic knob
-Blackened
-Pin hardened

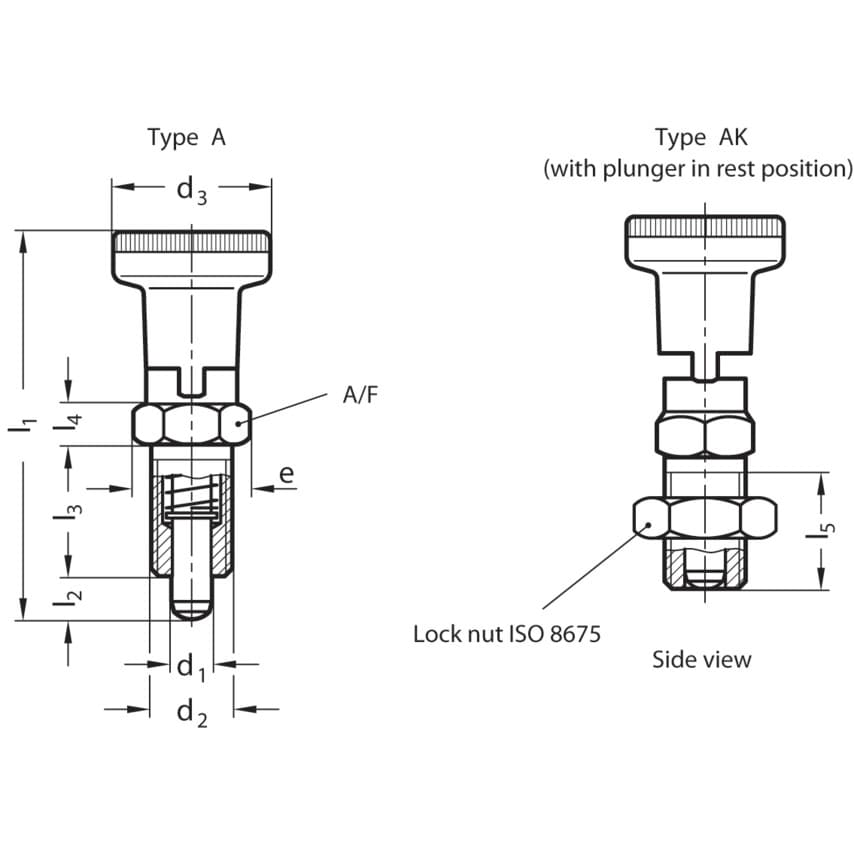

| D1 | 5mm |
| l2 min | 5mm |
| A/F | 12mm |
| Material | Stainless Steel |
| L3 | 17mm |
| MFR Part No. | GN617.1-5-AK-NI |
| E | 13.8mm |
| d3 | 21mm |
| l5 min | 15mm |
| D2 | M10+1mm |
| Type | AK Steel |
| L4 | 5mm |
| l1 | 51.0mm |
