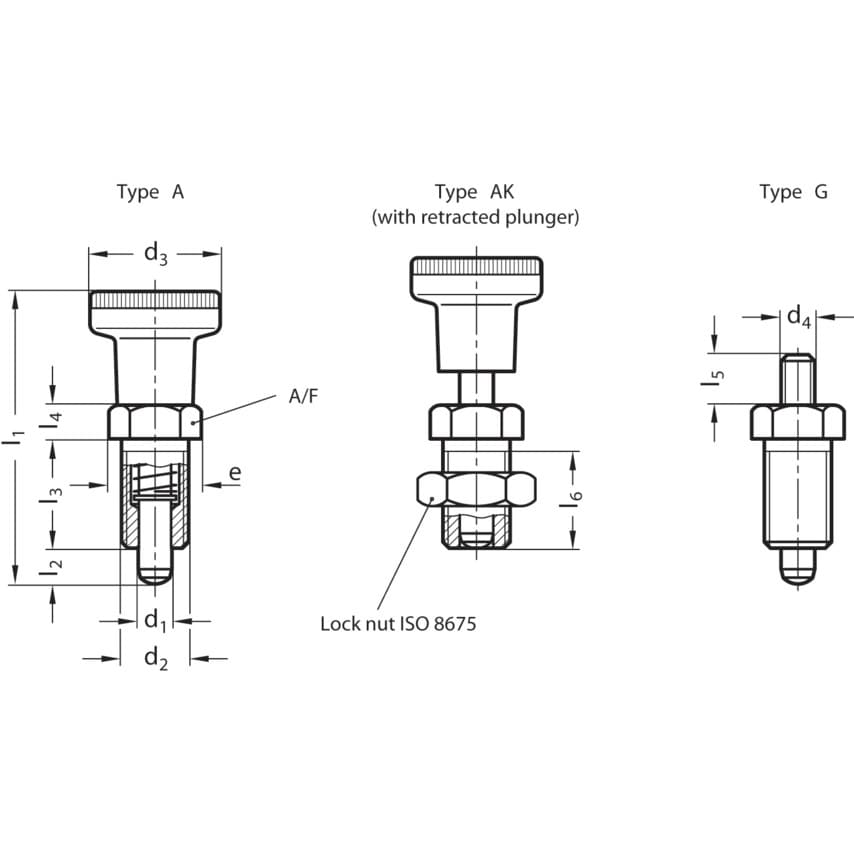

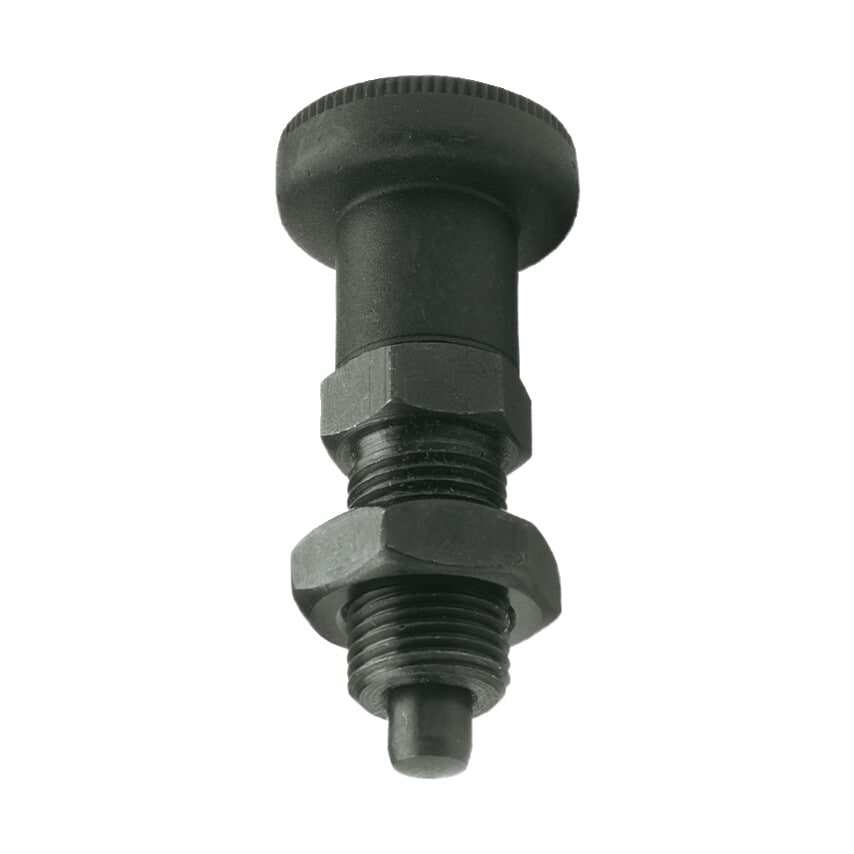

Type AK steel indexing plungers with lock nut and lifting knob.
-Plastic (Polyamide PA)
-Black, matt
-Not removable
| l1 | 54.5mm |
| MFR Part No. | GN617-6-AK |
| D1 | 6mm |
| D2 | M12 x 1.5mm |
| Colour | Black-Matt |
| Type | AK Steel |
| Product Type | Indexing Plunger |
| Material | Stainless Steel |
| l5 | 10mm |
| l6 min | 17mm |
| l2 min | 6mm |
| L4 | 6mm |
| E | 16.2mm |
| A/F | 14mm |
| d3 | 25mm |
| L3 | 20mm |
| d4 | M6mm |
