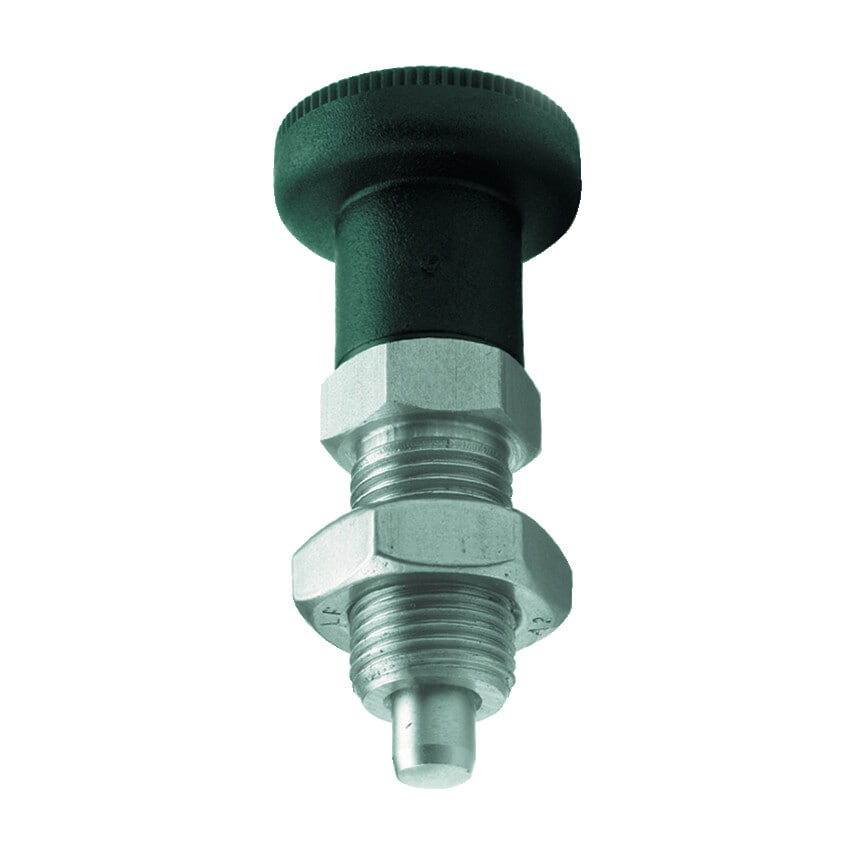

Type AK-NI stainless steel indexing plungers with lock knob and lifting knob.
Features:
-AISI 303 stainless steel construction
-Chemically nickel plated plunger pin
-Plastic (Polyamide PA) non removable, black matt knob

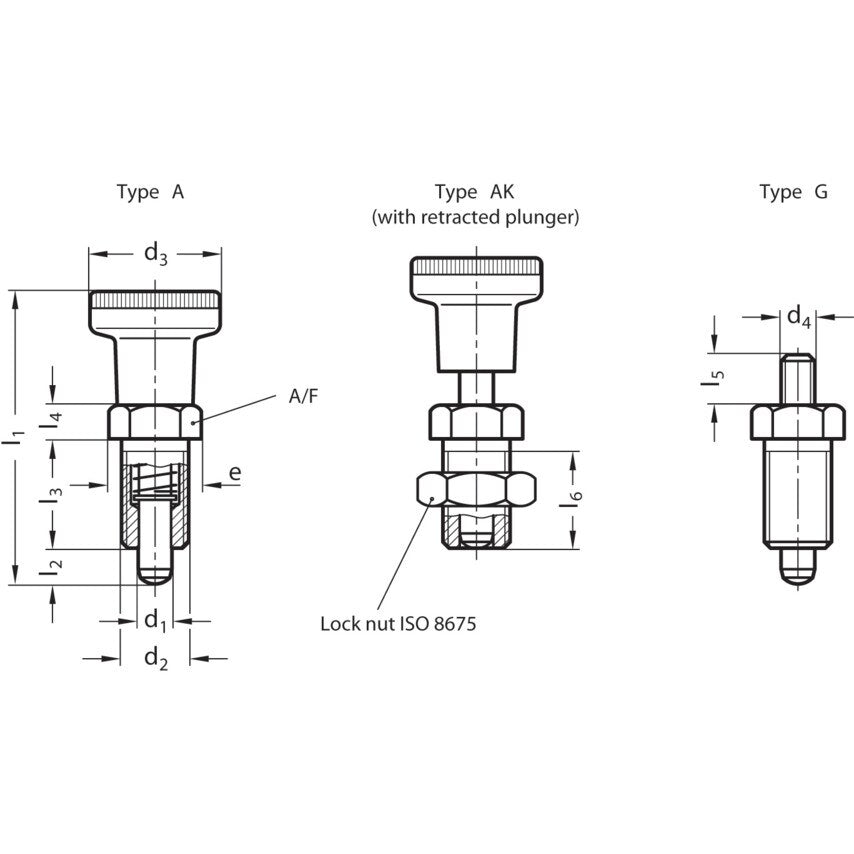

| l2 min | 8mm |
| d3 | 31mm |
| d4 | M8mm |
| MFR Part No. | GN617-8-AK-NI |
| L3 | 26mm |
| l1 | 69.0mm |
| E | 21.9mm |
| L4 | 8mm |
| D2 | M16 x 1.5mm |
| Material | Stainless Steel |
| l6 min | 23mm |
| Product Type | Indexing Plunger |
| D1 | 8mm |
| l5 | 12mm |
| Type | AK-NI Stainless Steel |
| A/F | 19mm |
