Product Range: CoroTurn XSInternal machining of small high quality featuresHigh precision and repeatabilityThese high-quality ground tools are designed for exact cutting-edge position, enabling high precision and repeatability in internal turning machining.Locking precisionThe solid carbide boring bar fits precisely into the adaptor with a locating pin. Collet-clamped adaptors ensure rigid clamping with increased stability.Internal coolantAll adaptors for CoroTurn XS are designed with internal coolant supply. Collet-clamped adaptors have selectable coolant direction for better chip evacuation and safe machining.Features & Benefits- Internal turning, diameters from 0.3 mm- Turning, threading, parting and grooving- Close tolerancesApplication area- For internal finishing applications- Hole diameter: 0.37.2 mm (0.0120.283 inch)- Internal turning, copying, back boring, profiling, grooving, pre-parting and threading- Face grooving
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 13.1 |

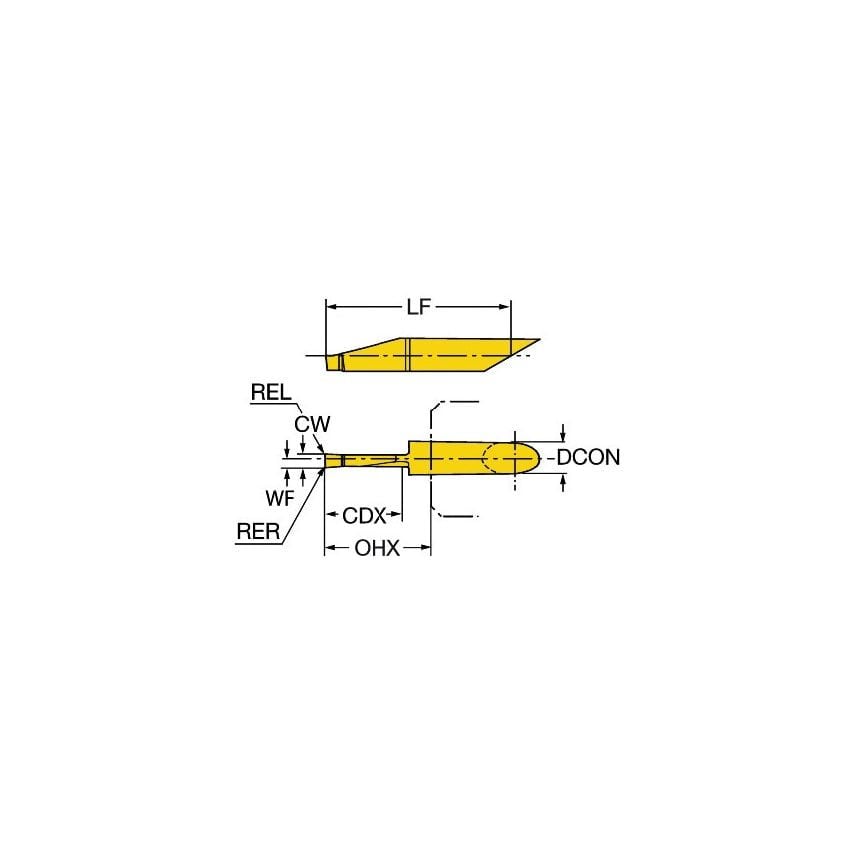

| Functional Length | 57.25mm |
| Grade | 1025 |
| Maximum Cutting Depth | 25mm |
| Axial Groove Support Direction | 1 |
| Unit Measured | Metric |
| Hand Preference | Left |
| Maximum Overhang | 33mm |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Cutting Width | 4mm |
| Connection Diameter | 10mm |
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN+TiN |
| MFR Part No. | 26365883 |
