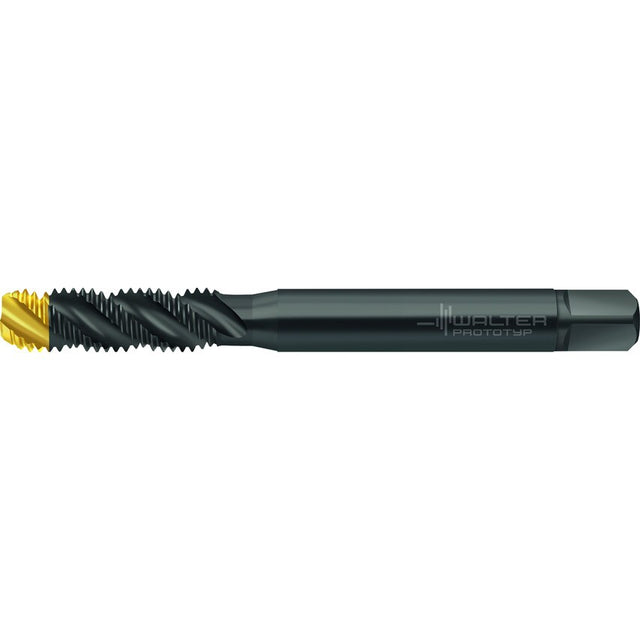

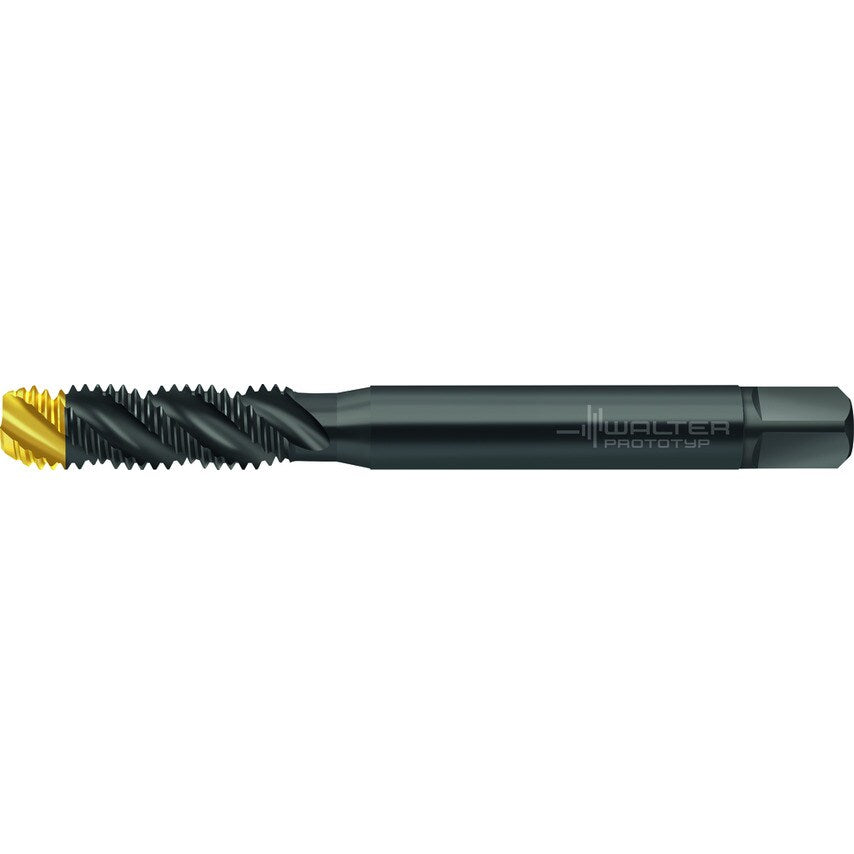

HSS-E PM machine taps Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 371 right hand flute 45 Suitable for blind hole WW60AG M 8 P=0.0492in
| Tool Designation | TC120-M8-C1-WW60AG |
| Driving Square Length | 9mm |
| Thread Pitch | 1.25mm |
| Functional Length | 90mm |
| Clamping Width | 6.2mm |
| MFR Part No. | 7263040 |
| Usable Length | 35mm |
| Cutting Edge Length | 26.5mm |
| Connection Diameter | 8mm |
| Number of Grooves | 3 |
| Thread Size | M 8 |
