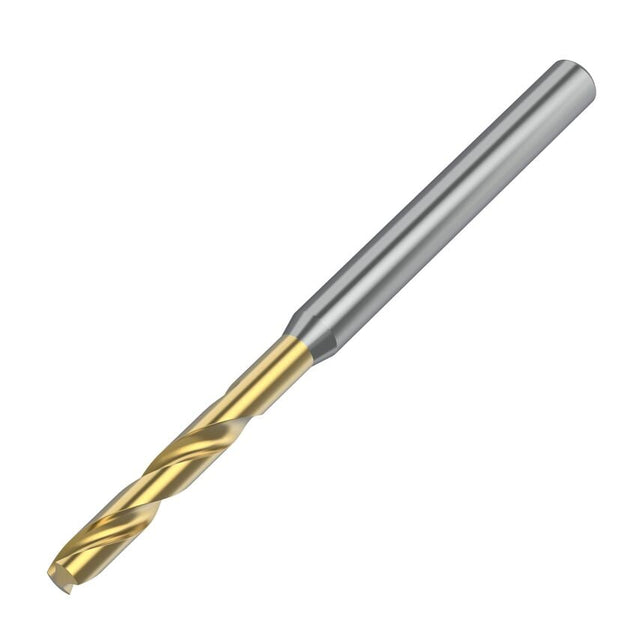

GOdrill Wide Range of Materials
Solid Carbide Drills
| Coolant Supplied | No |
| Unit Measured | Metric |
| Adapter Style | Straight-Cylindrical |
| Primary Material | Steel |
| MFR Part No. | 4150817 |
| Flute Construction | Helical Flute |
| Overall Length | 143mm | 143.0000mm |
| Shank Length | 48.0000mm |
| Drill Point | 2.84mm |
| Drill Diameter | 16.4000mm |
| Number of Flutes | 2 |
| Drill Depth | 71mm | 71.0000mm |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Clamping Length | 48mm |
| Functional Length | 140.1600mm |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Material | Carbide |
| Helix Angle | 27.258 |
| Finish/Coating | TiN |
| Assembly Length | 98.16mm |
| Flute Length | 93mm | 93.0000mm |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Adapter Type | Cylindrical |
