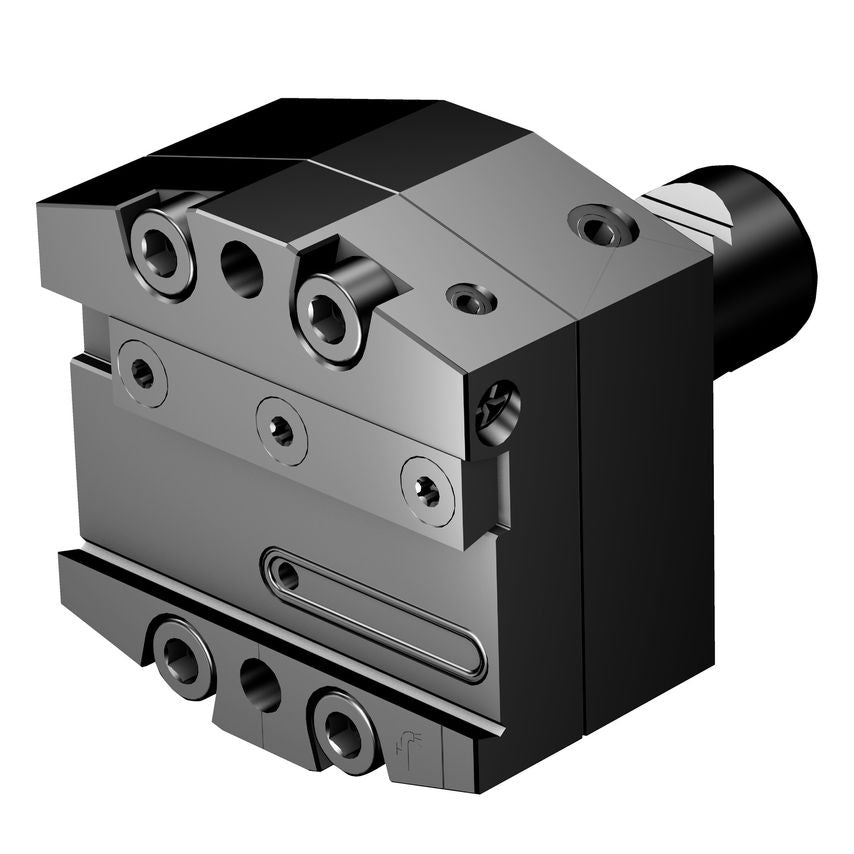

VDI to blade adaptor
| Coolant Exit Style | 3 |
| Connection Diameter | 30mm |
| CoroPak | 18 |
| Functional Length | 12.5mm |
| Unit System | Metric |
| Coolant Entry Style Code | 70 |
| Through Hole Function Property | Yes |
| Body Material | Steel |
| MFR Part No. | 26472394 |
| Hand Preference | Left |
| Overall Width | 85mm |
| Workpiece Side Body Angle | 90\u00b0 |
| Maximum Overhang | 45.5mm |
| Overall Height | 83mm |
| Damping Property | No |
| Weight | 2714.1g |
