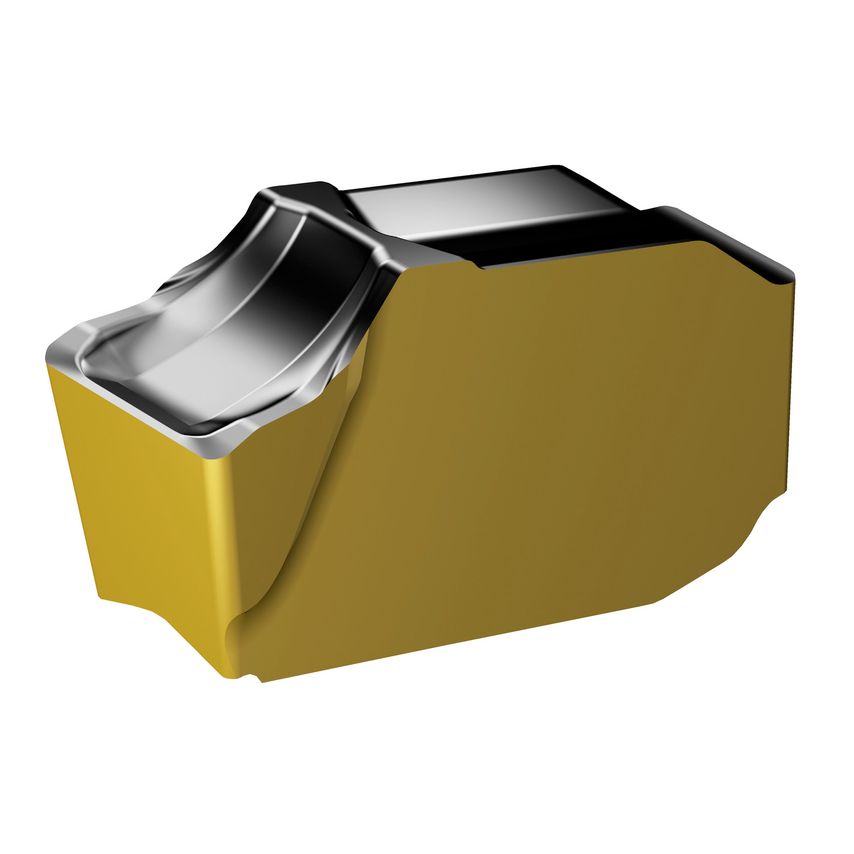

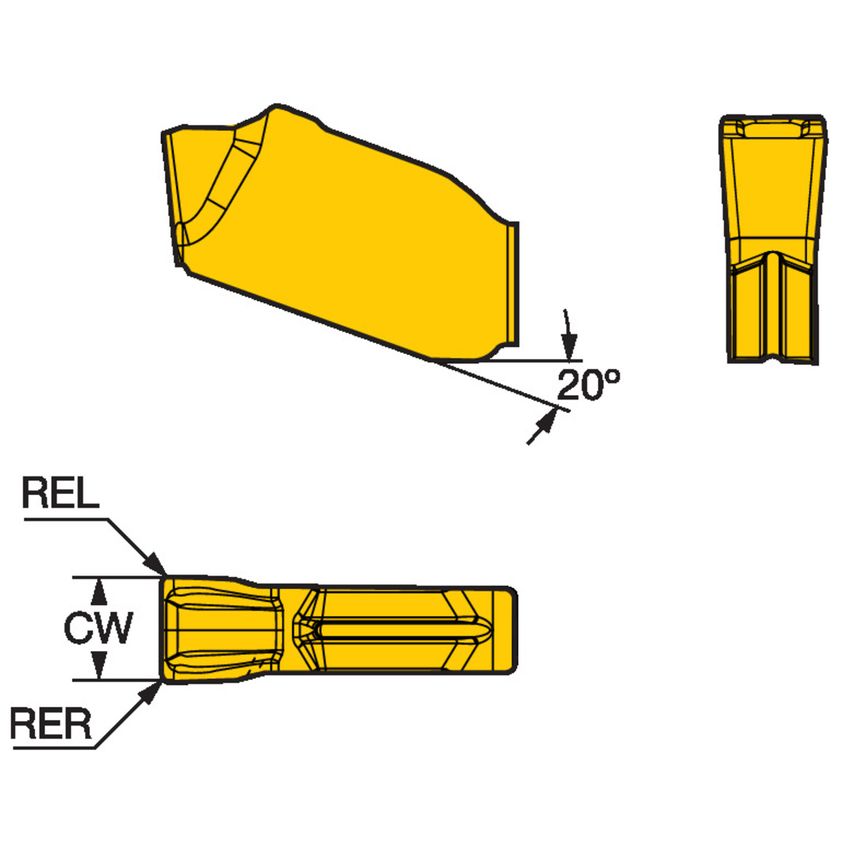

Product Range: CoroMill QDHigh-security groove milling and parting offThe internal coolant solution provides great chip evacuation. By getting rid of chip issues, surface quality is improved and machining security ensured. Internal coolant also helps regulate the heat at the cutting zone, which is especially beneficial for ISO S materials.Optimized milling grades and E-tolerance inserts for controlled chip evacuation, high-quality grooves with tight tolerances and long, predictable tool life.The quick-release key ensures correct clamping force. This user-friendly solution prevents wear on the insert seats caused by changing inserts. Insert position is always stable and precise, providing great groove quality and machining security over time.Features & Benefits- Parting off with milling cutters- Quality grooves without chip issues- Very secure tools with great reliability- Quick and easy insert changesApplication Area- Deep grooving and parting off- External and internal machining- Roughing to finishing
| CoroPak | 15.2 |
| Clearance Angle Major | 7\u00b0 |
| Insert Size/Shape | CoroMill QD - Size J |
| Hand Preference | Neutral |
| Coating Process Type | CVD |
| Insert Mounting Style | Clamp |
| Unit Measured | Imperial |
| Grade | 3330 |
| Cutting Edge Count | 1 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Machine Side Body Angle | 0\u00b0 |
| Coating Type | TiCN+Al2O3+TiN |
| MFR Part No. | 6657017 |
| Cutting Width | 4.76mm |
