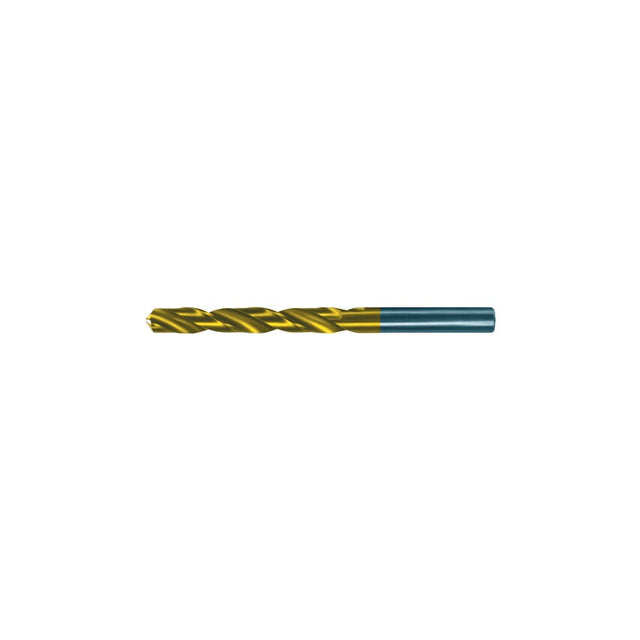

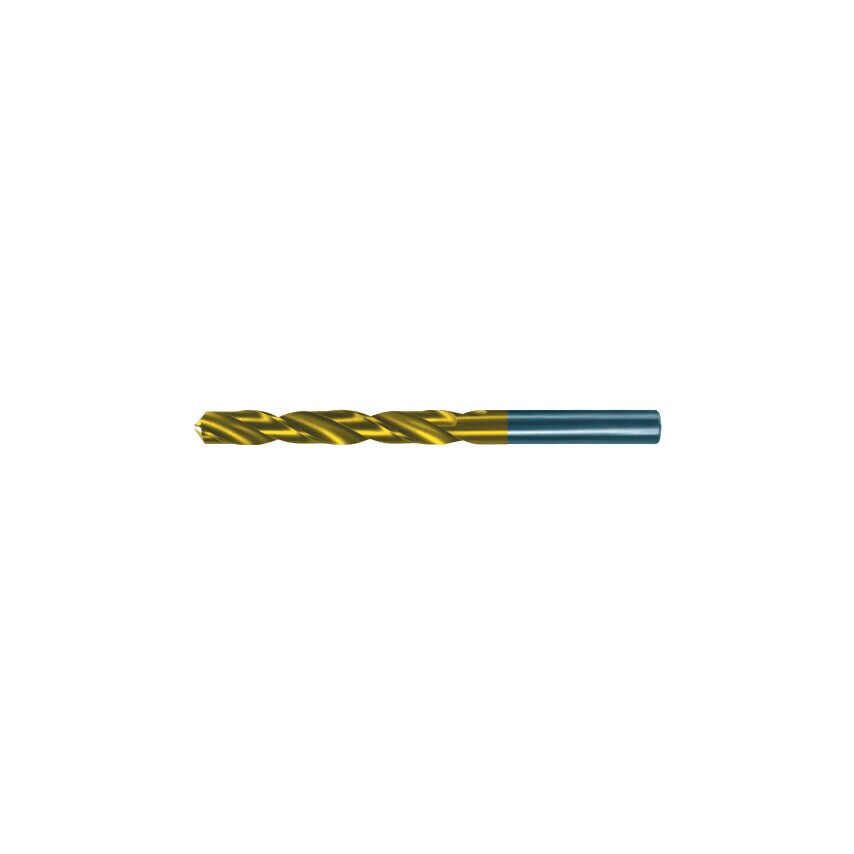

Series 5519 Hss-Co Straight Shank TiN coated drill for use on general steels/brass, stainless steels,hardened materials, universal steels and cast iron.
Features
HSS-Co
Metric
Tin Coated
4- facet split point
5xD
Manufactured to DIN 338
Sizes 1.00mm to 14.00mm
| MFR Part No. | 05519 005.560 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Flute Length | 57mm |
| Standards Met | DIN 338 |
| Shank Type | Straight |
| Helix Type | GU 500 |
| Finish/Coating | TiN |
| Flute Construction | Ground flutes |
| Drill Diameter Metric | 5.56mm |
| Overall Length | 93mm |
| Shank Diameter Tolerance | H8 |
| Series | 5519 |
| Point Angle | 118\u00b0 |
| Drill Diameter | 5.56mm |
| Number of Flutes | 2 |
| Point Type | Four Facet | Split Point |
| Material | Cobalt High Speed Steel |
| Flute Type | Spiral |
