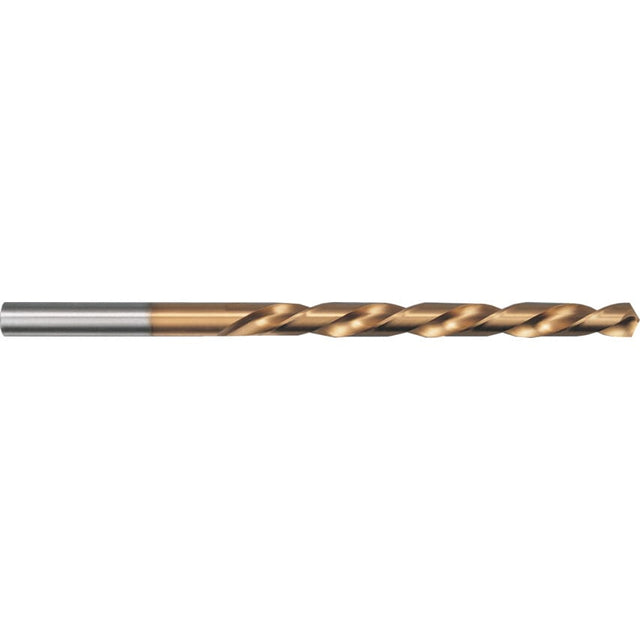

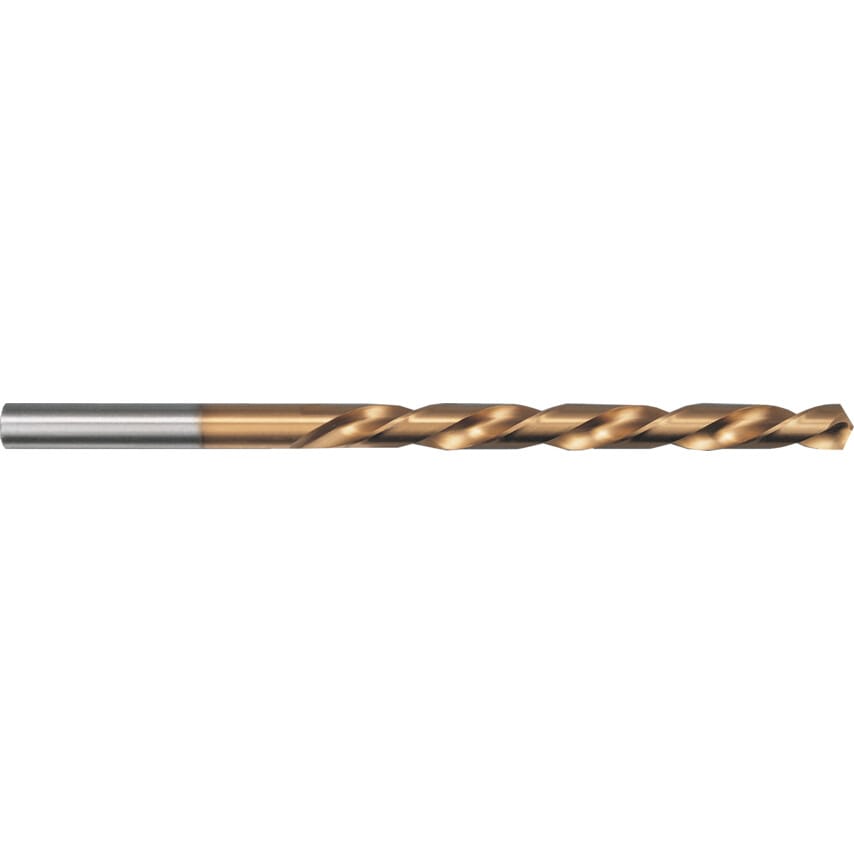

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Material | HSS |
| Drill Length Type | Long Series |
| Point Angle | 118\u00b0 |
| System of Measurement | Metric |
| Finish/Coating | TiN |
| Standards Met | DIN 340 |
| Drill Diameter | 1.1mm |
| Shank Diameter Tolerance | H8 |
| Drill Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| Flute Length | 37mm |
| Cutting Direction | Right Hand |
| Overall Length | 60mm |
| Coolant Delivery | External |
| MFR Part No. | 00667 001.100 |
| Point Type | Thinned Point |
| Shank Type | Straight |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 1.1 |
| Series | 667 |
| Flute Type | Spiral |
