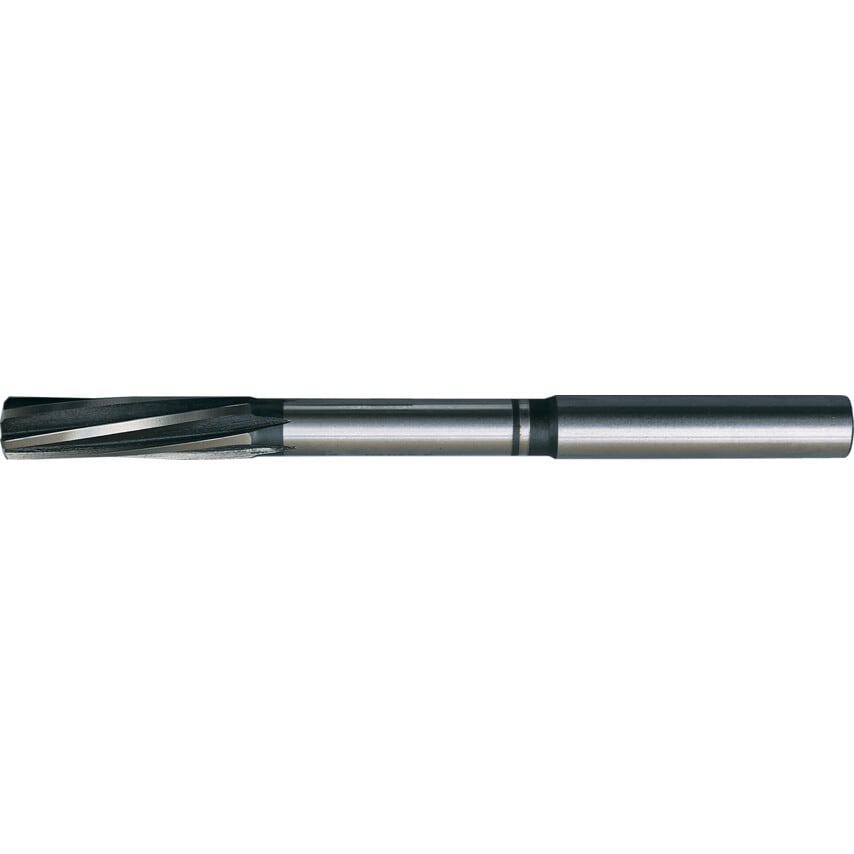

496 7.11MM Chucking Reamer Machine HSS-E Intermediate

Guhring  |  SKU: ZT1131196X
Cash
£28.59
Standard price
Pro
£27.73
With tools.com Pro
Finance
£0.59
/week
Approx. See your options
Save on every purchase
Theft replacement plan
No. 496 Available in diameters ranging from 2mm to 12mm in increments of 0.01mm. Made from HSS-E steel with a bright finish, left hand spiral flute. For all ferrous and non-ferrous metals and hard and soft plastics. For use on CNC machines, producing high quality reamed holes. Manufactured to DIN 212 & DIN 2172 section 1. Shank diameter = cutting diameter - 0.025mm. 2.00 ~ 2.65/2.66 ~ 10.00 H9. Diameter Tolerances (to H7) Up to 5.5mm: + 0.004mm - 0.000mm Above 5.5mm: + 0.005mm - 0.000mm. Code numbers are determined by the nominal diameter. Delete the decimal point; create a four figure number by preceding the figures with a zero, if required. All codes finish with the letter A, i.e. 3.60 becomes 0360A.
Number of Flutes 6
Cutting Direction Right Hand
Shank Type Straight
Overall Length 109mm
Product Type Chucking Reamer Machine
Material Cobalt High Speed Steel
Standards DIN 212
Shank Diameter 7.1mm
Length Type Standard Length
Reamer Diameter 7.11mm
Finish/Coating Bright
Flute Length 31mm
Reamer Type Fixed
Material Grade M35
Diameter Tolerance 0.005 - 0.000
MFR Part No. 00496 007.110
Standards Met DIN 212 | DIN 2172 Section 1
Flute Type Left Hand Spiral
