No. 5527

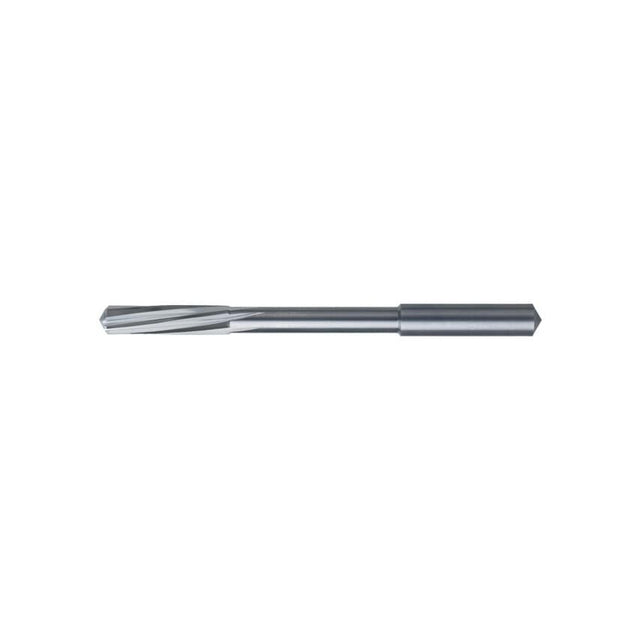

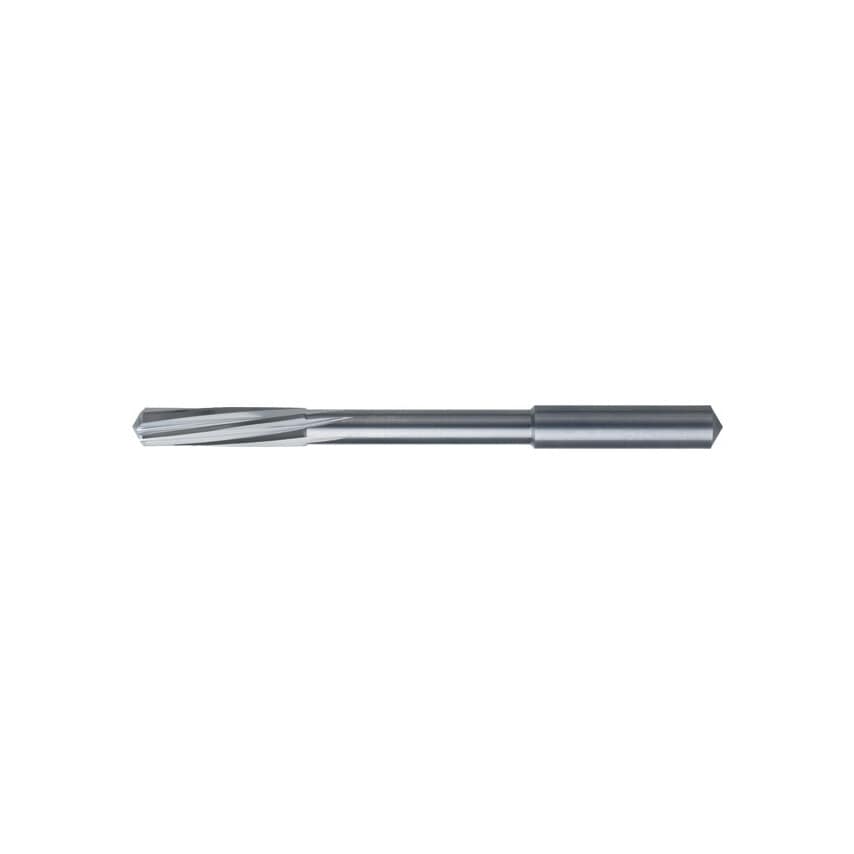

Guhring carbide NC machine chucking reamers are similar to DIN 8093 with straight shank (h6) for standardised tool clamping in hydraulic or shrink fit chucks. The combination of NC machine chucking reamer and hydraulic, high precision clamping or shrink fit chuck respectively offers highest concentricity and process reliability for the production of holes to required tolerances.
Surface finish: bright.
Cutting direction: right hand.
> 4.0mm with highly unequal flute spacing.
Left hand spiral flutes.
Tolerances:
from 0.98 to 5.03mm 0.000/+0.004,
from 5.97 to 12.05mm 0.000/+0.005.

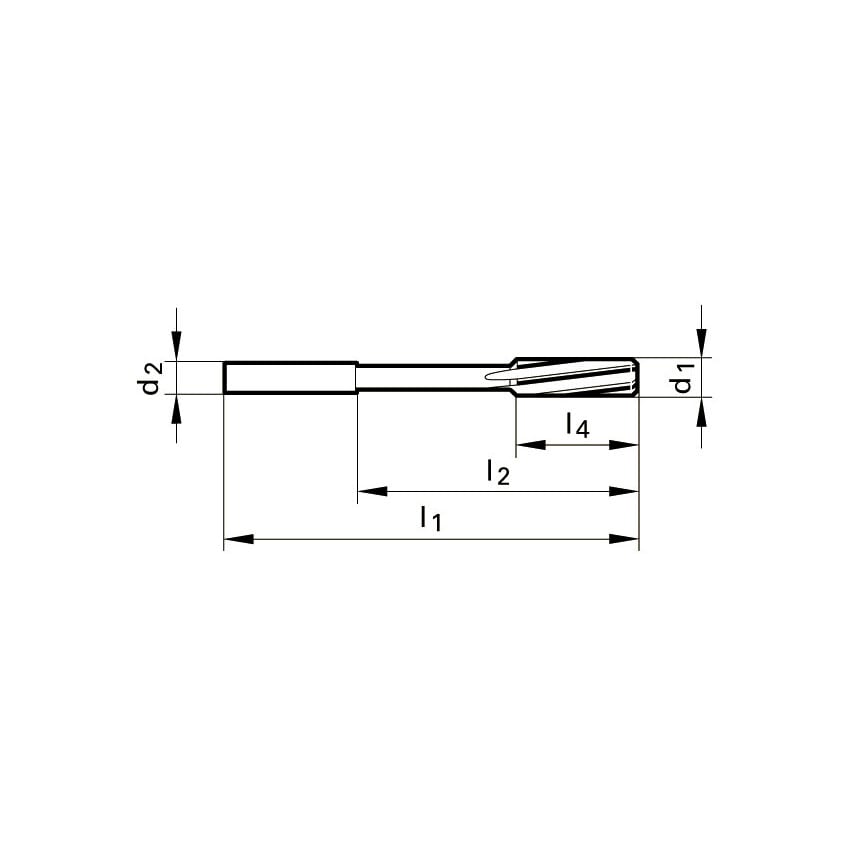

| Flute Length | 38mm |
| Shank Type | Straight |
| Reamer Diameter | 9.98mm |
| Overall Length | 133mm |
| Product Type | Machine Chucking Reamer |
| Length Type | Standard Length |
| Flute Type | Left Hand Spiral |
| MFR Part No. | 9.980 |
| Diameter | 9.98mm |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Reamer Type | Fixed |
| Number of Flutes | 6 |
| Diameter Tolerance | 0.000 - +0.004 |
| Material Grade | K10 |
| Finish/Coating | Bright |
