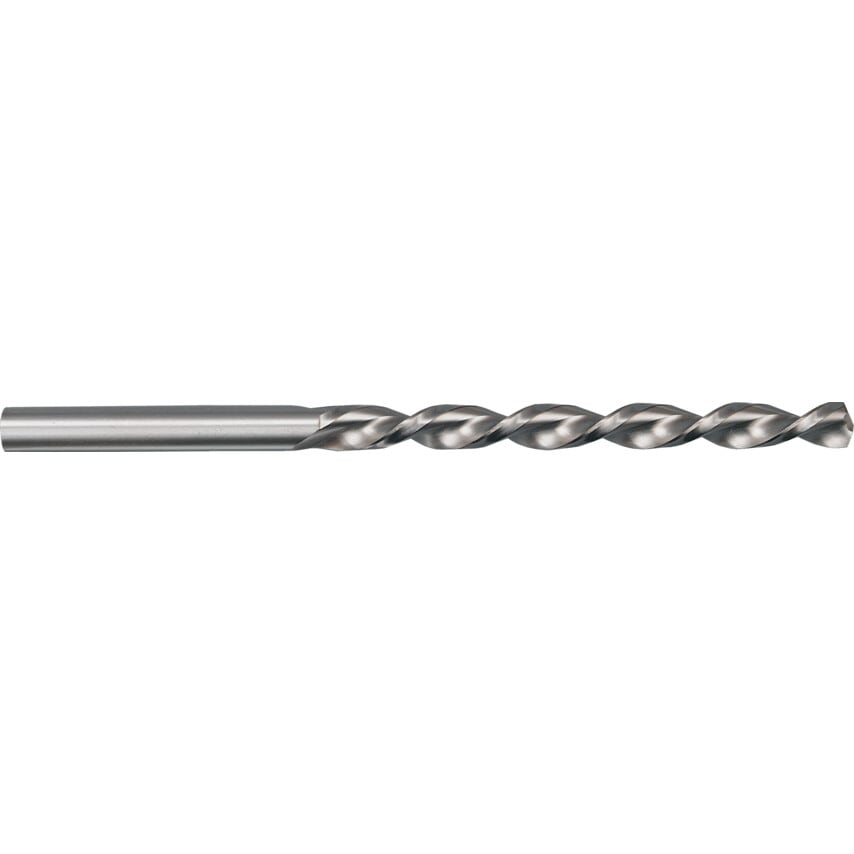

A special drill for drilling deep holes in soft materials and those producing long stringy swarf with a case hardness of 500N/mm2 such as mild steel, aluminium, aluminium alloys, zinc, refined copper and wood. Manufactured to DIN340.
For all dimensional specifications please refer to our catalogue.
| Series | 501 |
| Material | HSS |
| Point Type | Thinned Point |
| Standards Met | DIN 340 |
| Finish/Coating | Bright |
| Number of Pieces | 1 |
| Flute Type | Parabolic |
| Drill Diameter Tolerance | H8 |
| Drill Diameter | 1/8in |
| Point Angle | 130\u00b0 |
| Flute Length | 69mm |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | H8 |
| Helix Type | GT 50 |
| MFR Part No. | 00501 003.170 |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Overall Length | 106mm |
| Web Thickness | Form A |
| Cutting Direction | Right Hand |
| System of Measurement | Inch |
