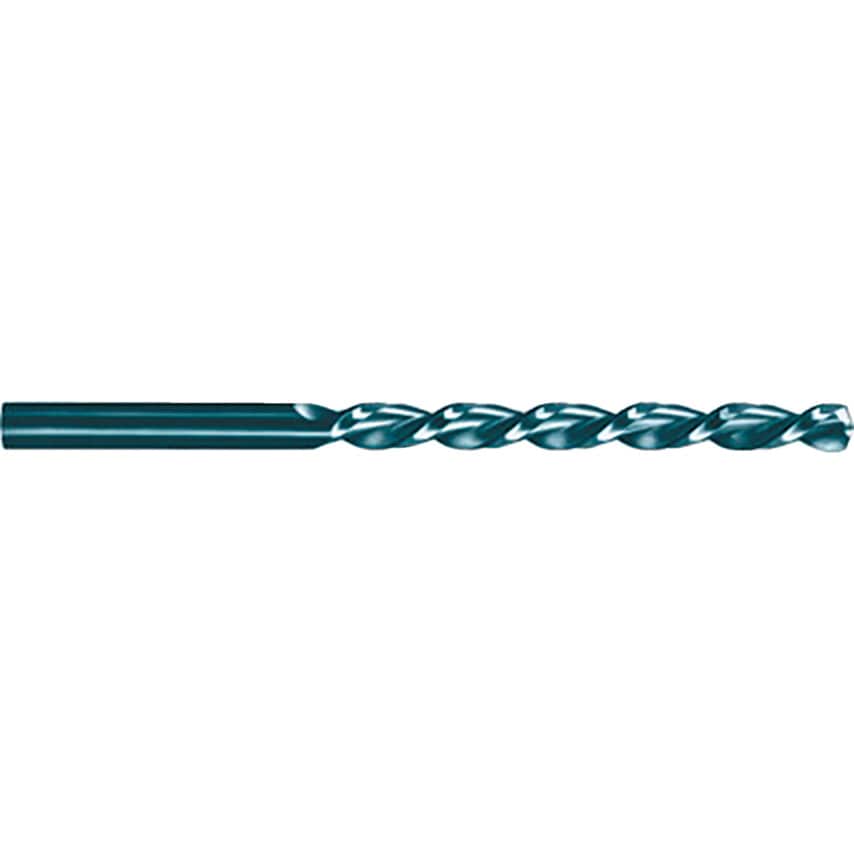

Series 336 HSS-Co High Helix (Parabolic Flute) Straight Shank Long Series DrillsMetric Flute type GT100 - Guhring's parabolic flute design is suitable for a wide range of materials and the most universal - can be used to successfully drill ferrous and non-ferrous materials. Standard GT100 drills incorporate a 130 point angle with a Type A web thin for maximum efficiency. Manufactured to DIN340. Right hand cutting.Series 336: <2.36mm: Steam tempered finish; >2.36mm / <12mm : nitrided lands.
| Drill Diameter Tolerance | H8 |
| Point Angle | 130\u00b0 |
| Drill Diameter Gauge | No.16 |
| Overall Length | 126mm |
| System of Measurement | Gauge |
| Point Type | Conventional |
| Flute Length | 82mm |
| Standards Met | DIN 340 |
| Gauge Size | 16 |
| Flute Type | Parabolic |
| Finish/Coating | Steam Tempered |
| Number of Pieces | 1 |
| Type | L/S |
| Shank Type | Straight |
| Coolant Delivery | External |
| Series | 336 |
| Drill Length Type | Long Series |
| Shank Diameter Tolerance | F11 |
| Web Thickness | Form A |
| Cutting Direction | Right Hand |
| MFR Part No. | 00336 004.500 |
| Flute Construction | Ground flutes |
| Helix Type | High Helix |
| Drill Diameter | 4.5mm |
| Drill Diameter Metric | 4.5 |
| Product Type | Drills |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 2 |
