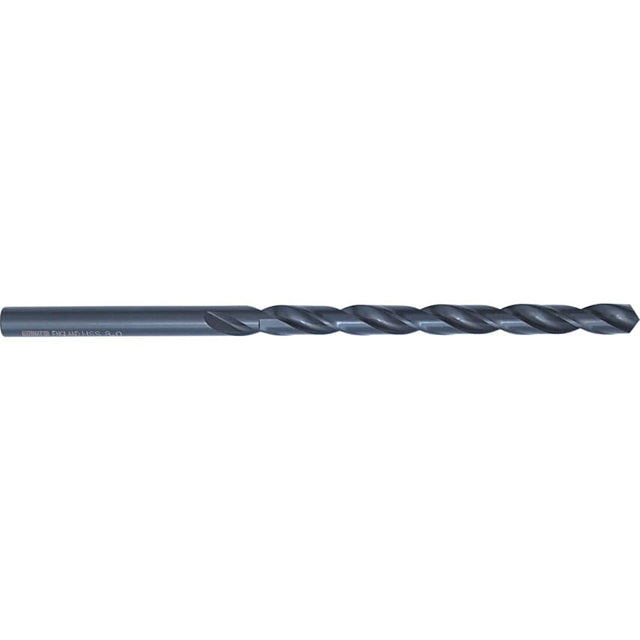

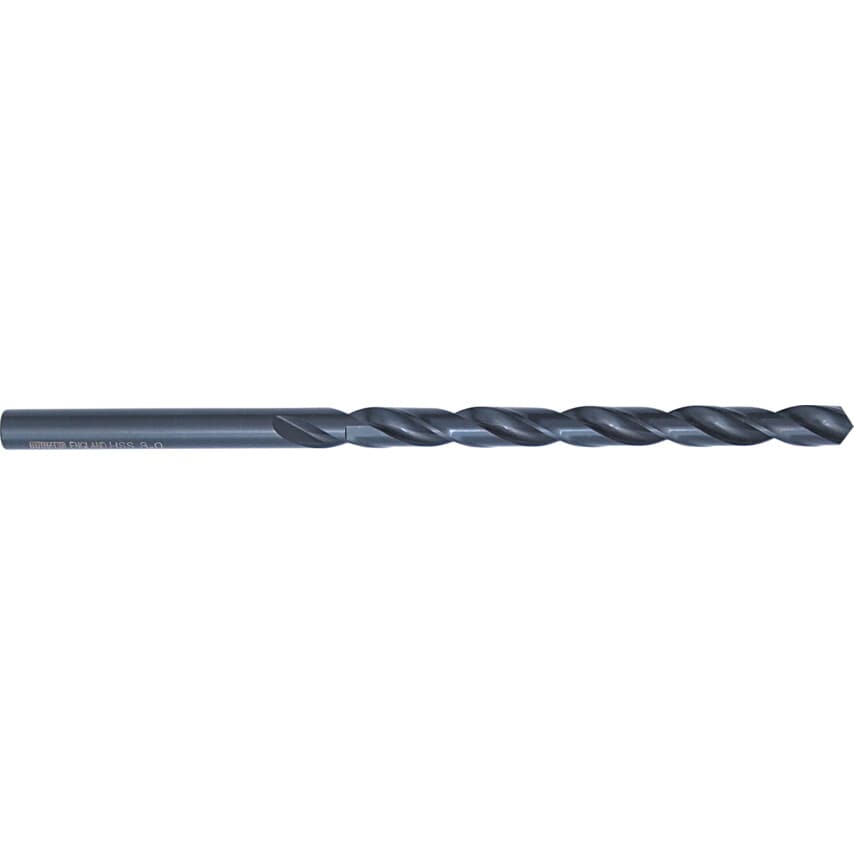

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Overall Length | 215mm |
| Point Type | Thinned Point |
| Shank Diameter Tolerance | H8 |
| MFR Part No. | 00502 006.400 |
| Drill Diameter Metric | 6.4 |
| Helix Type | High Helix |
| Drill Diameter | 6.4mm |
| Shank Type | Straight |
| Flute Length | 150mm |
| Finish/Coating | Uncoated |
| System of Measurement | Metric |
| Drill Diameter Tolerance | H8 |
| Standards Met | DIN 1869 |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Material | HSS |
| Web Thickness | Form A |
| Type | Drill |
| Point Angle | 130\u00b0 |
| Product Type | Drills |
| Flute Type | Parabolic |
| Flute Construction | Ground flutes |
| Drill Length Type | Extra Length |
| Series | 502 |
| Coolant Delivery | External |
| Number of Pieces | 1 |
