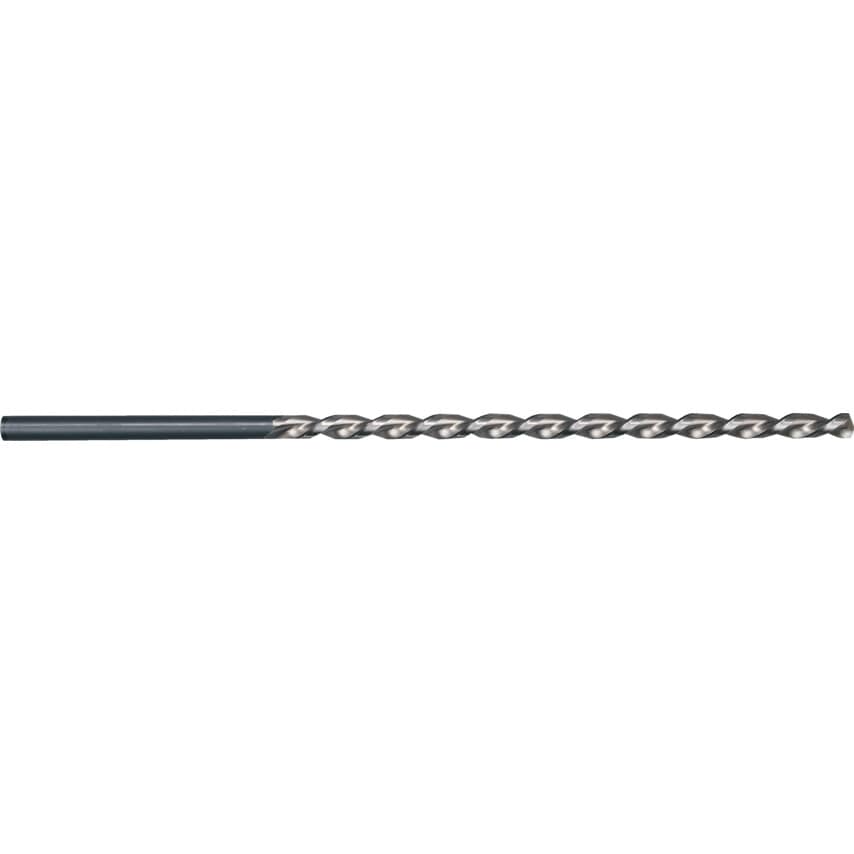

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Flute Type | Parabolic |
| Coolant Delivery | External |
| Drill Diameter | 9.5mm |
| Point Angle | 130\u00b0 |
| Series | 502 |
| Overall Length | 250mm |
| Drill Length Type | Extra Length |
| MFR Part No. | 00502 009.500 |
| Helix Type | High Helix |
| Type | Drill |
| Drill Diameter Metric | 9.5 |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Web Thickness | Form A |
| System of Measurement | Metric |
| Finish/Coating | Steam Tempered |
| Point Type | Conventional |
| Flute Length | 175mm |
| Shank Type | Straight |
| Number of Pieces | 1 |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Standards Met | DIN 1869 |
| Material | HSS |
