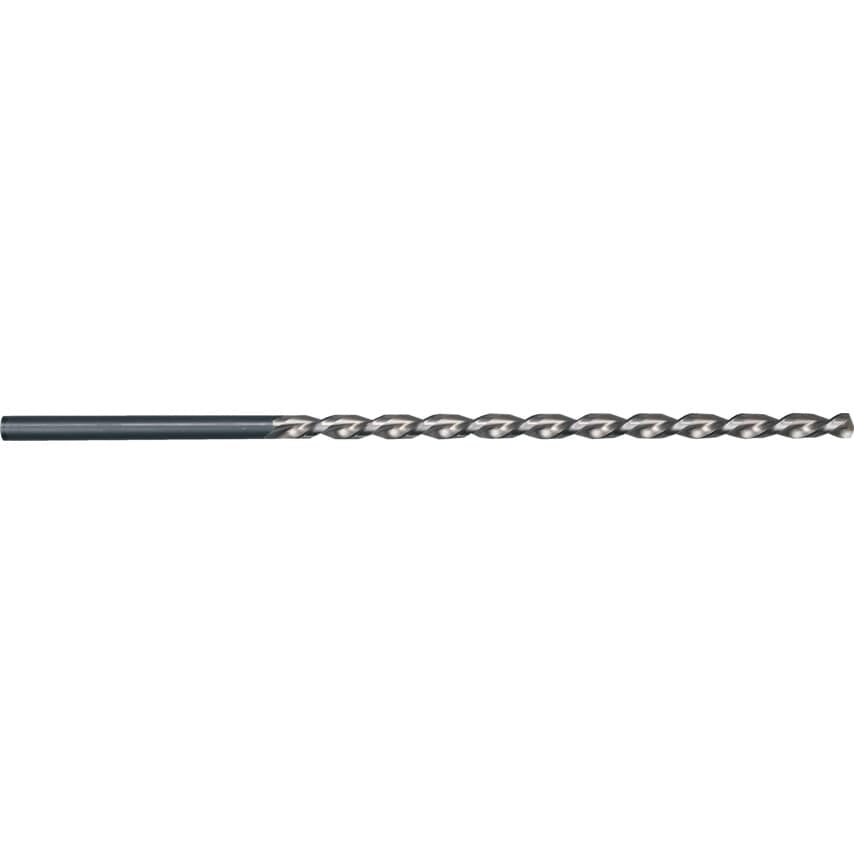

Series 504 HSS High Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| System of Measurement | Metric |
| MFR Part No. | 00504 007.500 |
| Cutting Direction | Right Hand |
| Point Angle | 130\u00b0 |
| Shank Type | Straight |
| Helix Type | High Helix |
| Number of Pieces | 1 |
| Product Type | Drills |
| Standards Met | DIN 1869 |
| Drill Diameter | 7.5mm |
| Material | HSS |
| Flute Type | Parabolic |
| Flute Construction | Ground flutes |
| Flute Length | 250mm |
| Series | 504 |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Overall Length | 370mm |
| Drill Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Size | 7.5mm |
| Drill Length Type | Extra Length |
