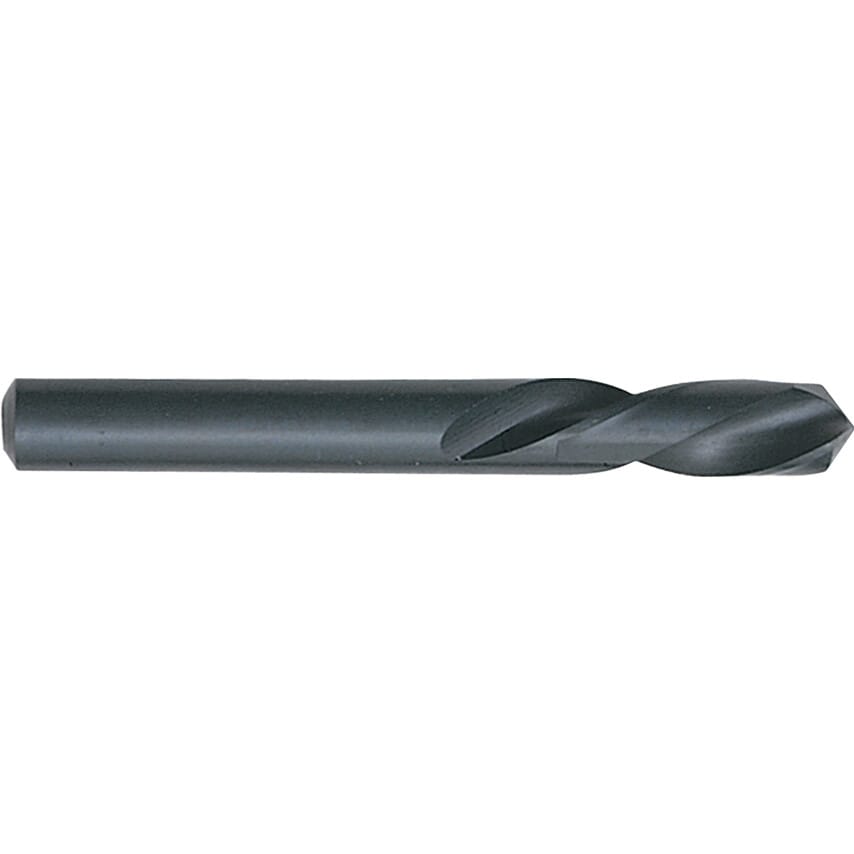

Series 223 HSS Straight Shank Stub Drills
Inch
Ideally suited for portable drill applications where the shorter flute and stub length offer the extra rigidity normally associated with fixed drilling. Standard web, 118 split point.
Manufactured to BS328:Part 1:1986/DIN1897.
| Drill Diameter Tolerance | H8 |
| Product Type | Stub Drills |
| Flute Length | 18mm |
| Standards Met | BS 328 | DIN 1897 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| System of Measurement | Inch |
| Flute Type | Spiral |
| Drill Diameter | 1/8in |
| Series | 223 |
| Point Angle | 118\u00b0 |
| Finish/Coating | Steam Tempered |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Drill Diameter Inch | 1/8 |
| Overall Length | 49mm |
| Type | Stub Drills |
| Number of Pieces | 1 |
| Material | HSS |
| Web Thickness | Form A |
| MFR Part No. | 00223 003.170 |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
